Service Manual FireCR
+
Computed Radiography Scanner
FireCR
+
| Parts Removal/Replacement 29

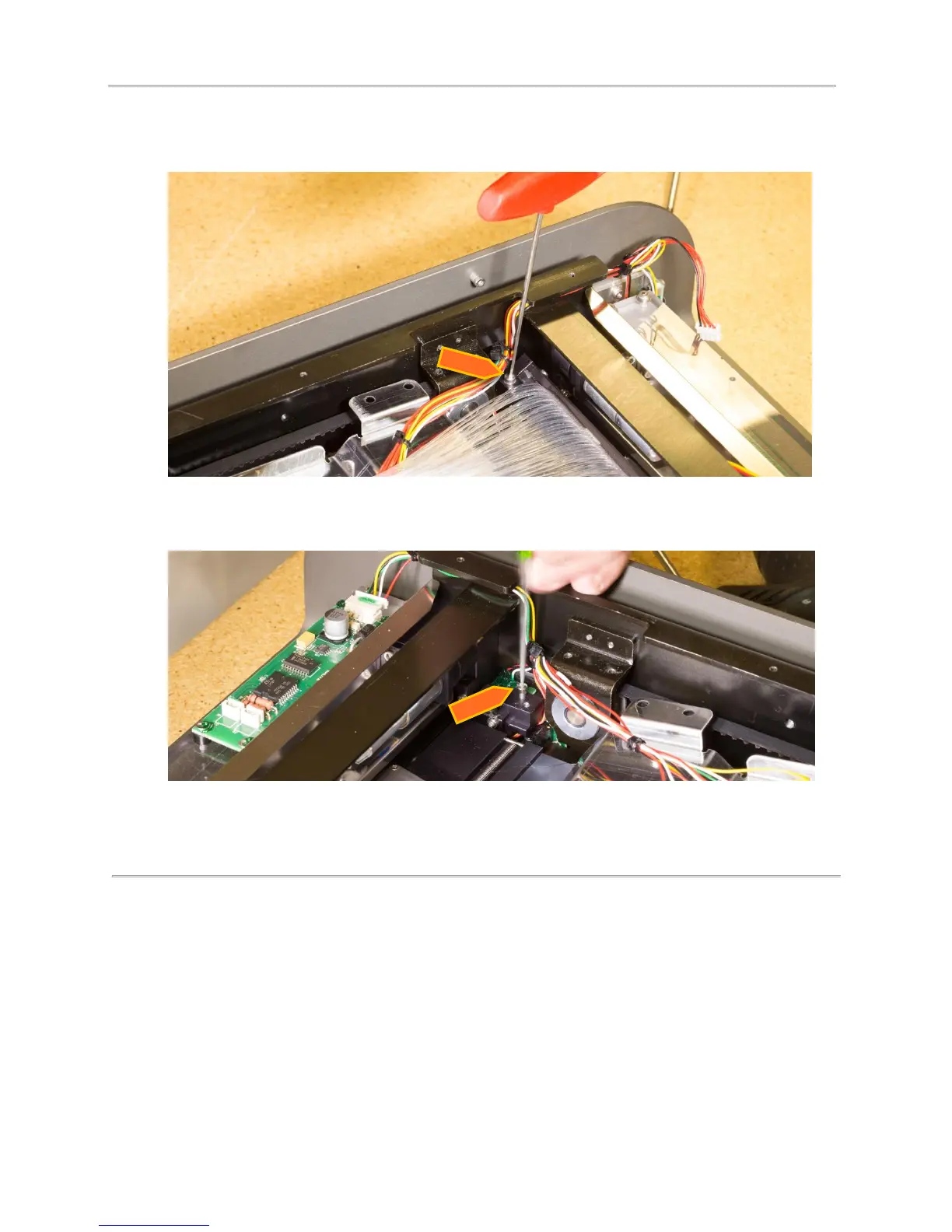

9. Remove the screw on each side of the fiber bundle (2.5mm hex).
10. Lift out fiber bundle. Note: Be careful not to scratch the fibers while pulling out the fiber
bundle and note the location of the dowel pin on each side.
11. Reattach in reverse order. Note: When reattaching the fiber bundle, make sure that the fiber
bundle rests on the dowel pins before refitting the screws.
