2. Determine the mounting location (speaker post or face-to-face window).
3. Position the housing, and mark the mounting holes:
D
For speaker post mounting, position the housing with the microphone as near to the top of the post as
possible. See Figure 2.
D
For face-to-face window mounting, position the housing with the microphone at the bottom. Make sure
the bottom of the housing is 42 to 54 inches above the driveway. See Figure 3.

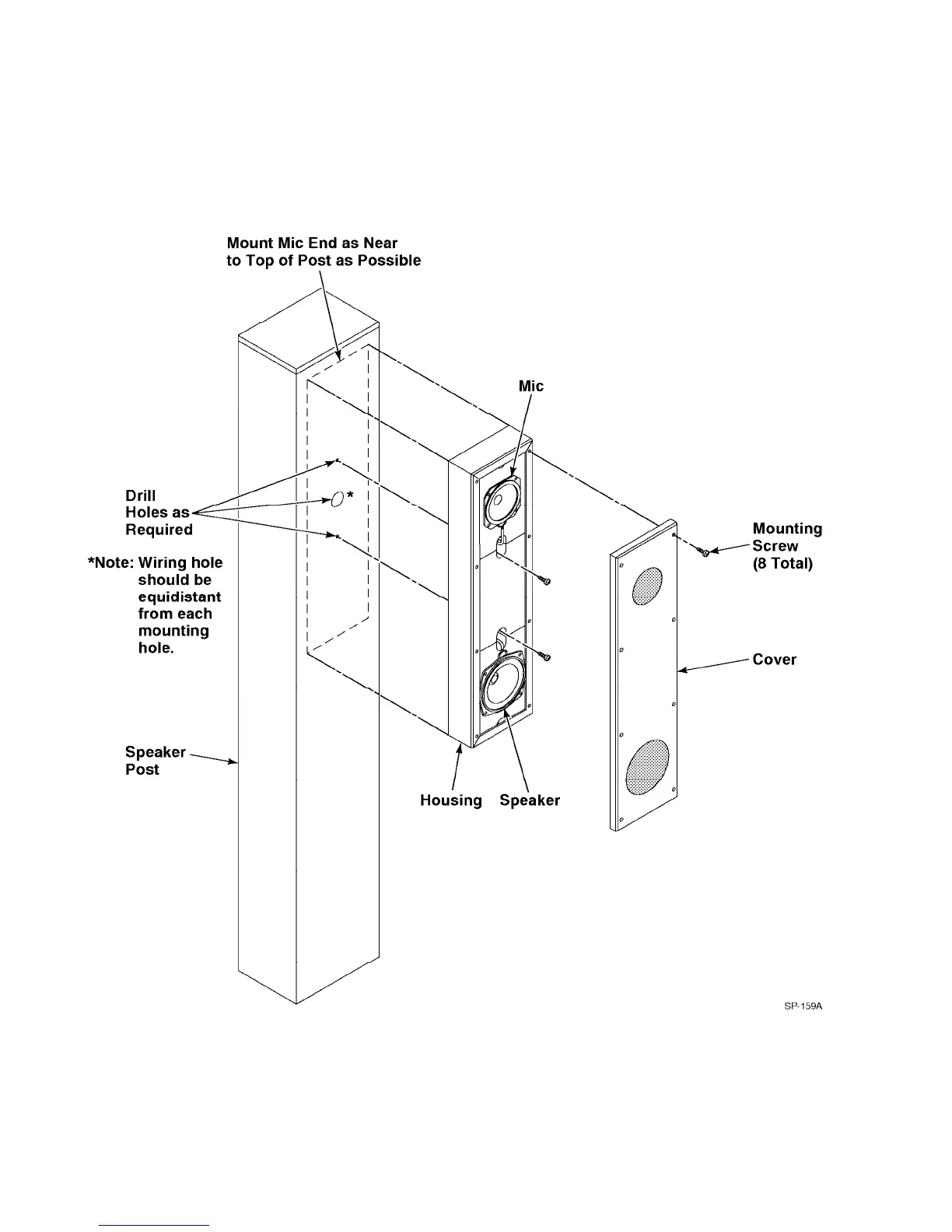

Figure 2. Speaker Post
