Installation Manual v3.1 | VISIX S-Series Network Camera
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
108

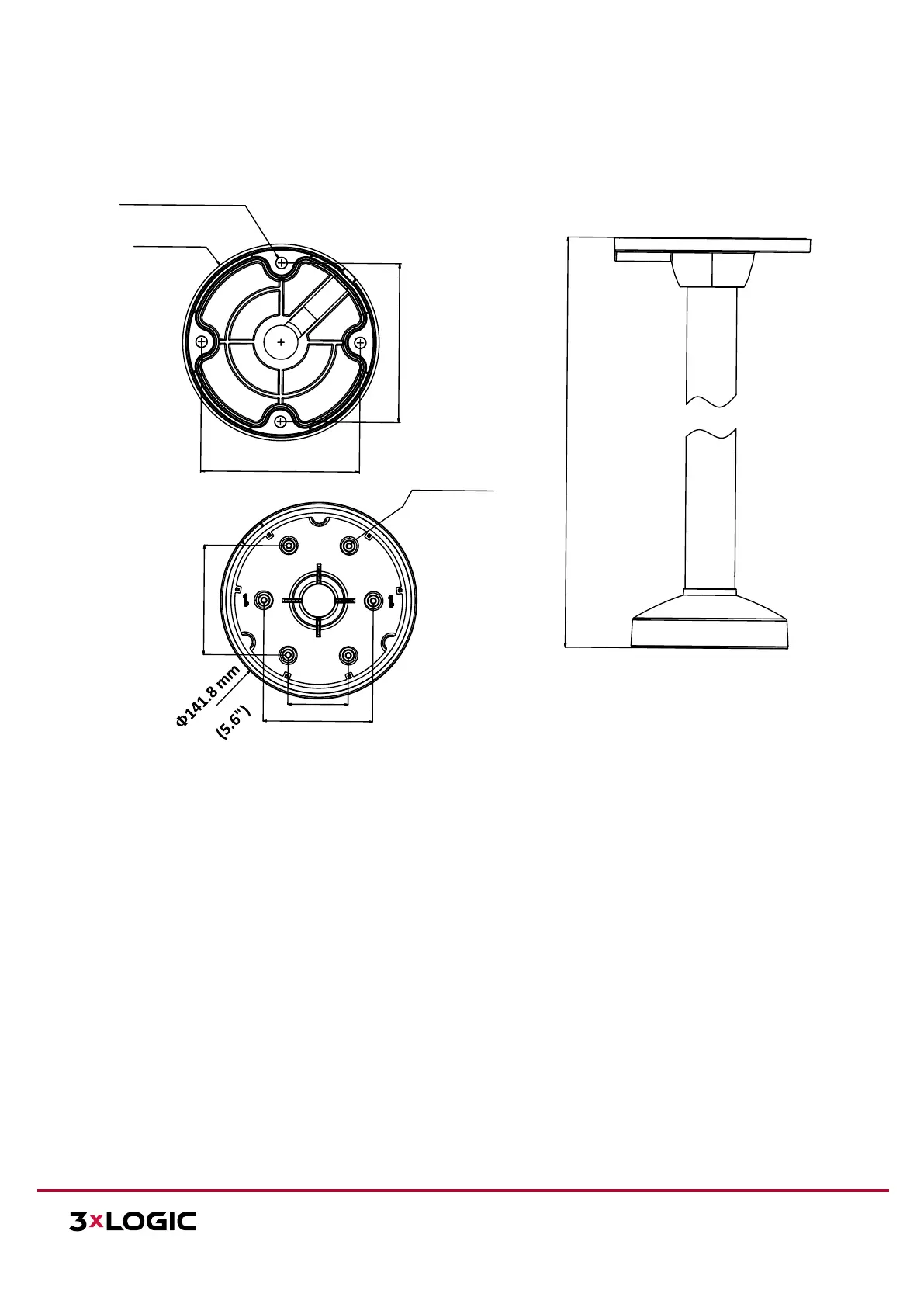

9.20 Pendant Mount Bracket for VX-2V-MD-RIWH (VX-PM-127)
565 mm (22.2" )
6 × M4
Depth: 8 mm (0.31" )
121.2 mm
(4.8" )
121.2 mm
(4.8" )
Φ150 mm
(5.9" )
4 × Φ8.5 mm (0.33" )
83.5 mm (3.3" )
46 mm (1.8" )
83.5 mm
(3.3" )
