5 Mini-Dome Camera Installation
5.1 VX-3P28-MD-IA
CAMERA DESCRIPTION

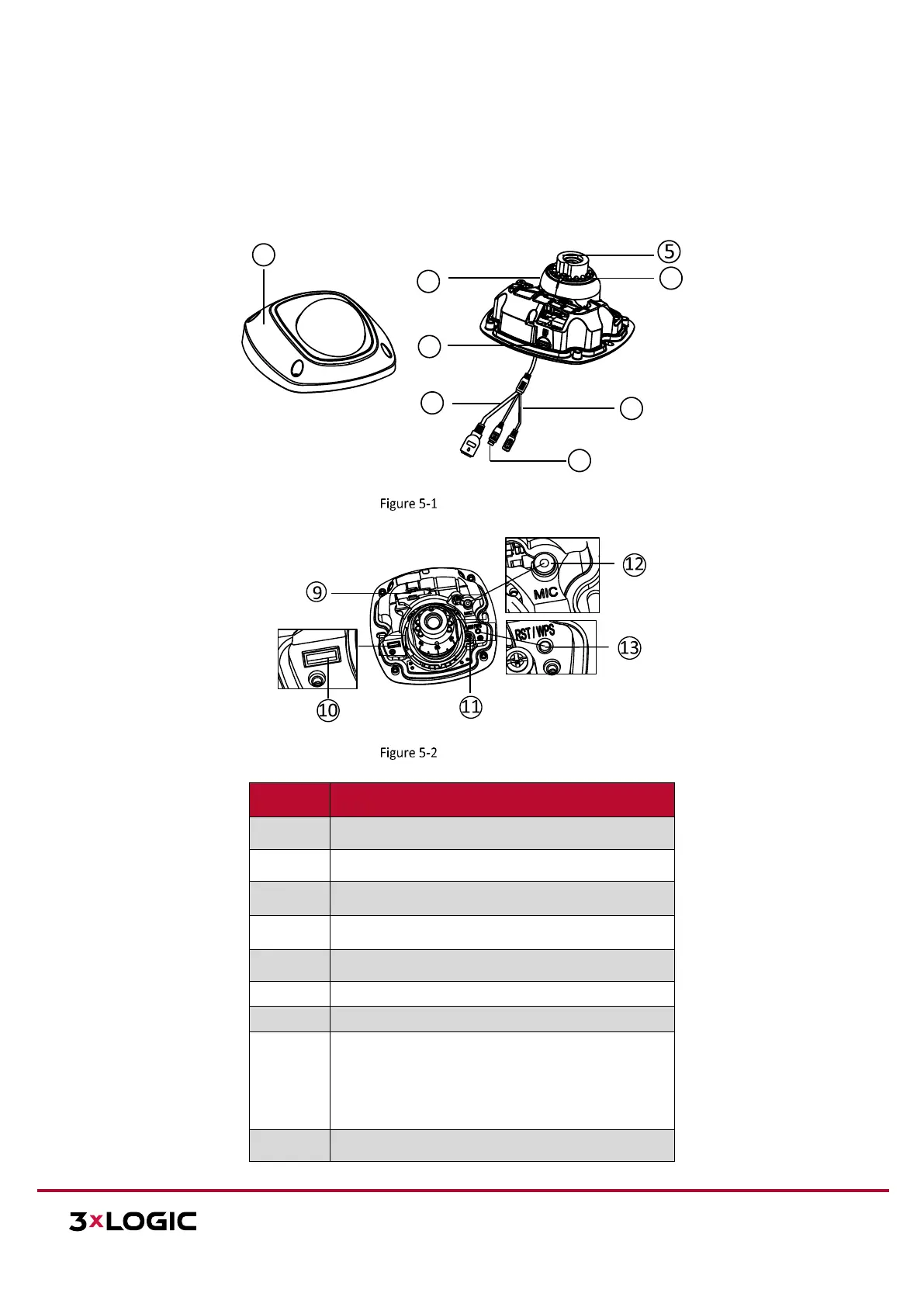

Overview (1)
Overview (2)
Number
Description
1
Front Cover
2
Dome Drive
3
Micro SD Card Slot
4
Network Cable
5
Lens
6
IR LED
7
Power Cable
8
Audio/Alarm Cable
I, O: Alarm In / Out
A: Audio Out
GND
9
Wi-Fi Antenna
8
4
2
1
3
7
6
