INSTALLATION — CEILING MOUNT
Steps:

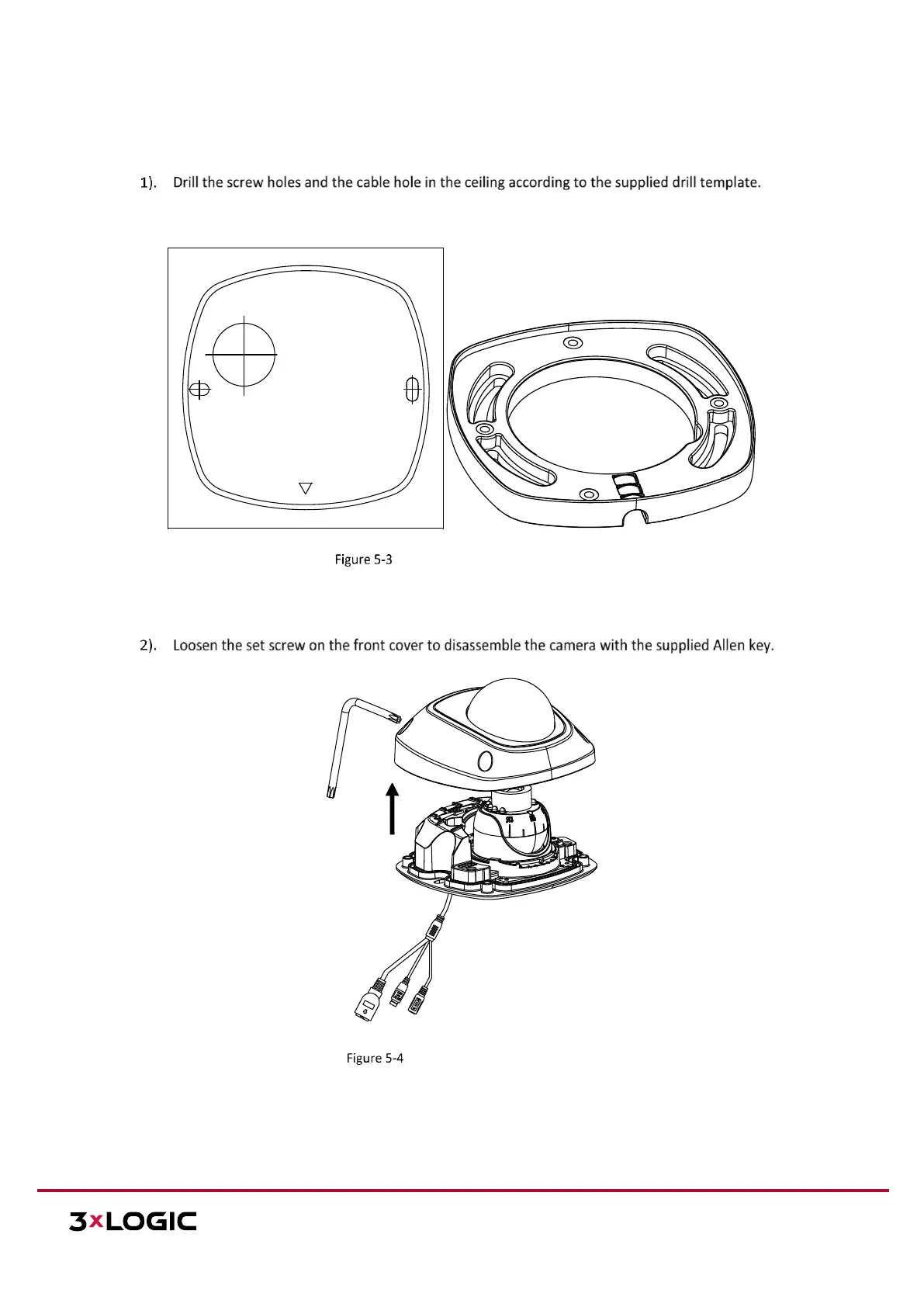

Drill Template/Adapter Plate
Disassemble the Camera
Drill Template
A
1 1
Hole A :for cables routed through the wall
Screw hole1 :for Mounting Base
FRONT
Code:194101278
