3xLogic VISIX S-Series Installation Manual

Installation Manual v3.1 | VISIX S-Series Network Camera
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
59
Number
Description
9
Audio Out
10
Reset Button
11
CVBS Interface
12
SD Card Slot
13
Mounting Base
14
Lens
15
Network Interface
NOTE: Press and hold RESET for 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.
NOTE: This series of camera supports 12V DC, 24V AC, and PoE power supply. Please make sure your power
supply meets the requirements.
AVAILABLE MOUNTS
 OD3 Wall Mount (3xLOGIC Product #: VX-OD3-BWM)
 OD3 Junction Box (3xLOGIC Product #: VX-OD3-BJB)
 OD3 Pendant Mount (3xLOGIC Product #: VX-OD3-BPM)
 Universal Corner Mount (3xLOGIC Product #: VX-CM)
 Universal Pole Mount (3xLOGIC Product #: VX-POLE)

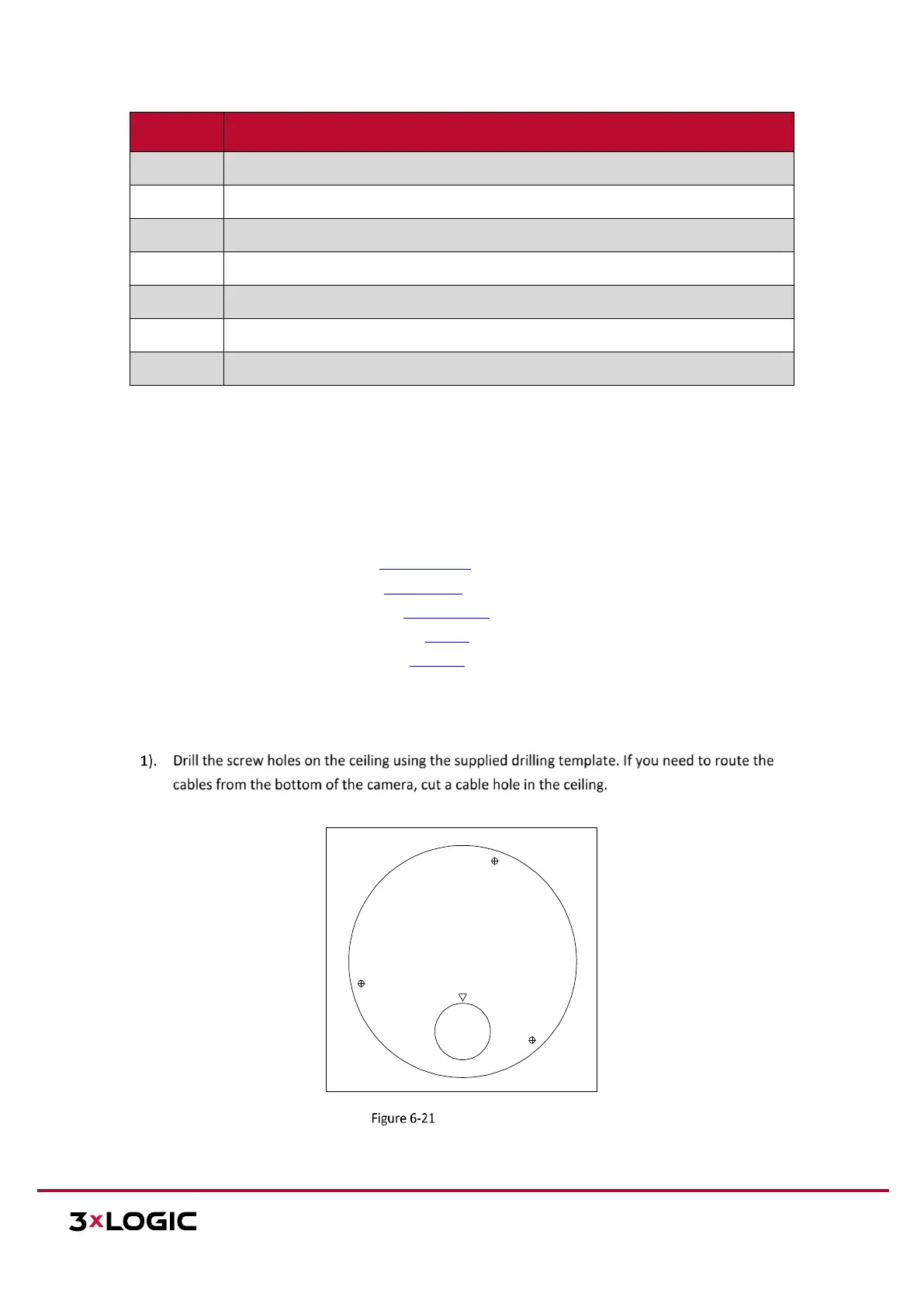

INSTALLATION — CEILING MOUNT
Steps:
Drilling Template
Screw hole 1:for Mounting Base
Hole A:for cables routed through the ceiling
FRONT
A
1
Cable Outlet
1
1
Drill Template
