AVAILABLE MOUNTS
 OD Wall Mount (3xLOGIC Product #: VX-WM-OD)
 OD Pendant Mount (3xLOGIC Product #: VX-PM-OD)
 Universal Corner Mount (3xLOGIC Product #: VX-CM)
 Universal Pole Mount (3xLOGIC Product #: VX-POLE)
INSTALLATION — CEILING MOUNT
Steps:

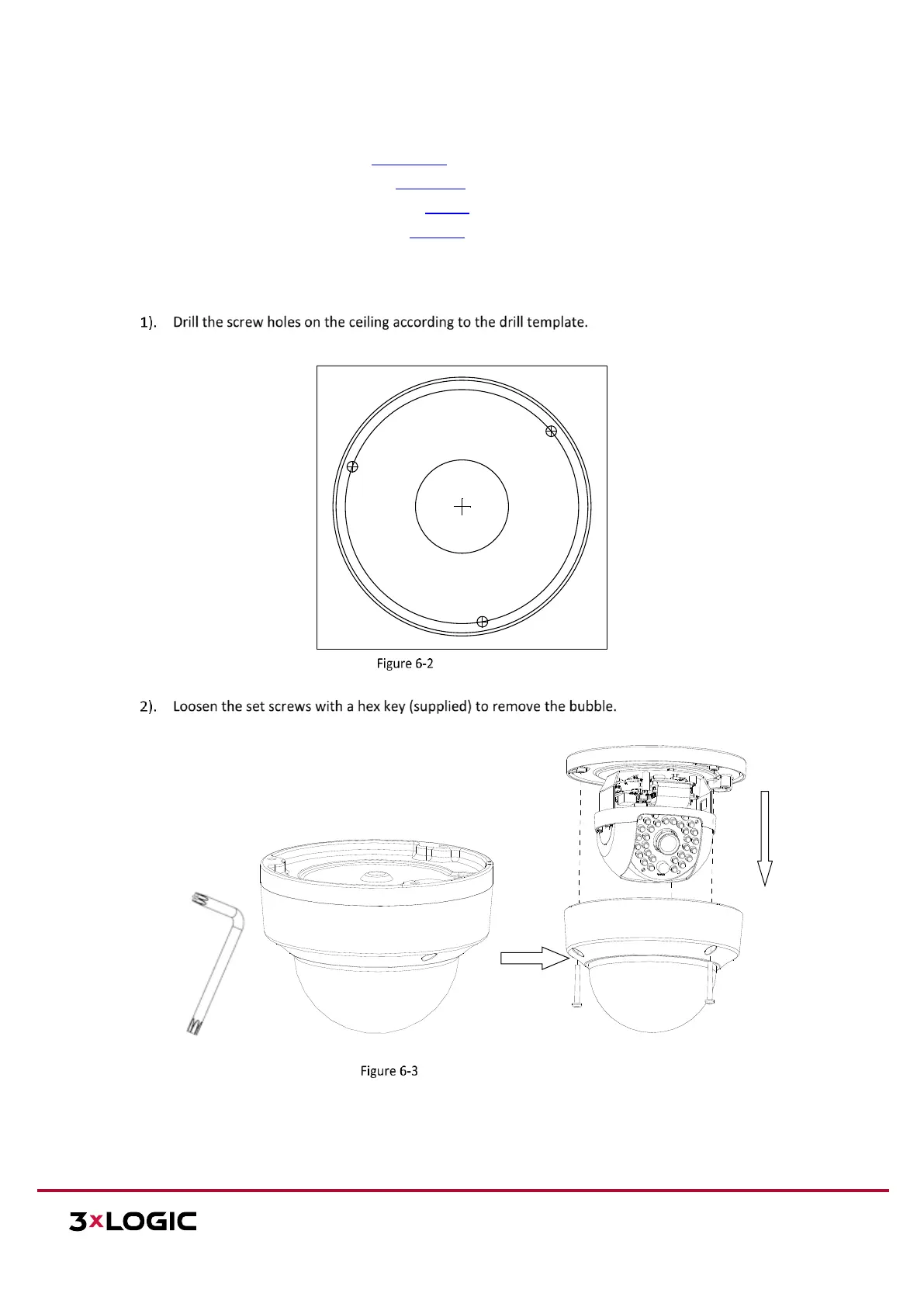

Drill Template
Remove the Bubble
Drill Template
Hole A: for cables routed through the ceiling
screw hole 1: for Mounting Base
1
1
1
A
