7.3 VX-3M-B-RIAWD, VX-3M20-B-RIAWD
CAMERA DESCRIPTION

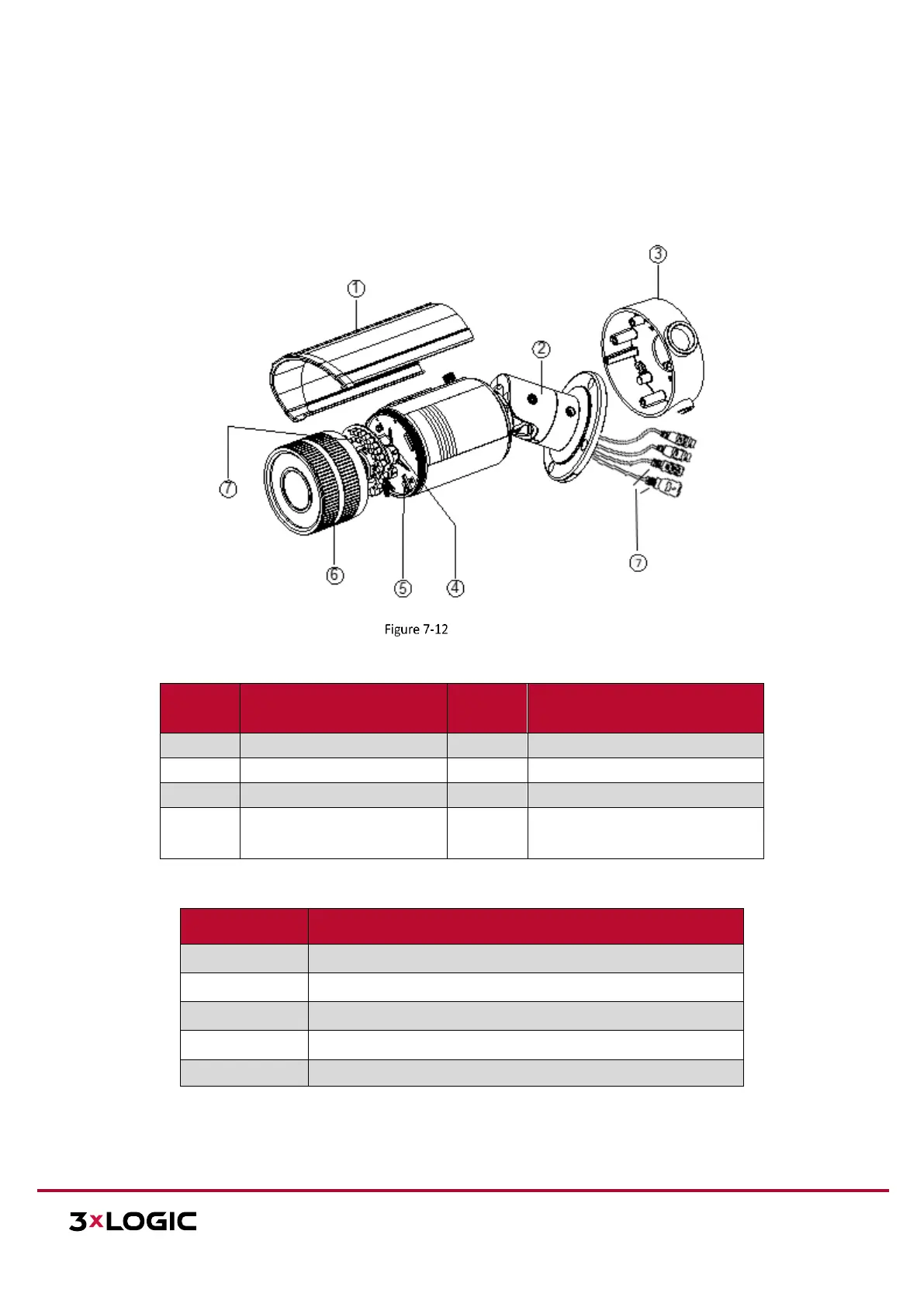

The overview of the network bullet camera is shown below. Please note the amount of cables included in the
harness will vary between models.
Overview
Number
Description
Number
Description
1
Sun Shield
2
Bracket
3
Junction Box
4
Reset
5
SD Card Slot
6
Front Box
7
Analog Video Output
7
DC12V; Power Interface
LAN; Network Interface
Label
Definition
AUDIO IN
Audio Input Interface
AUDIO OUT
Audio Out Interface
D+, D-:
RS-485 Interface
IN, G
Alarm Input Interface
1A, 1B
Alarm Output Interface
