3xLogic VISIX S-Series Installation Manual

Name: 3xLogic VISIX S-Series
Brand: 3xLogic
Rating: 4 (1 reviews)

110 pages

To Next Page

To Previous Page

Installation Manual v3.1 | VISIX S-Series Network Camera

12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC

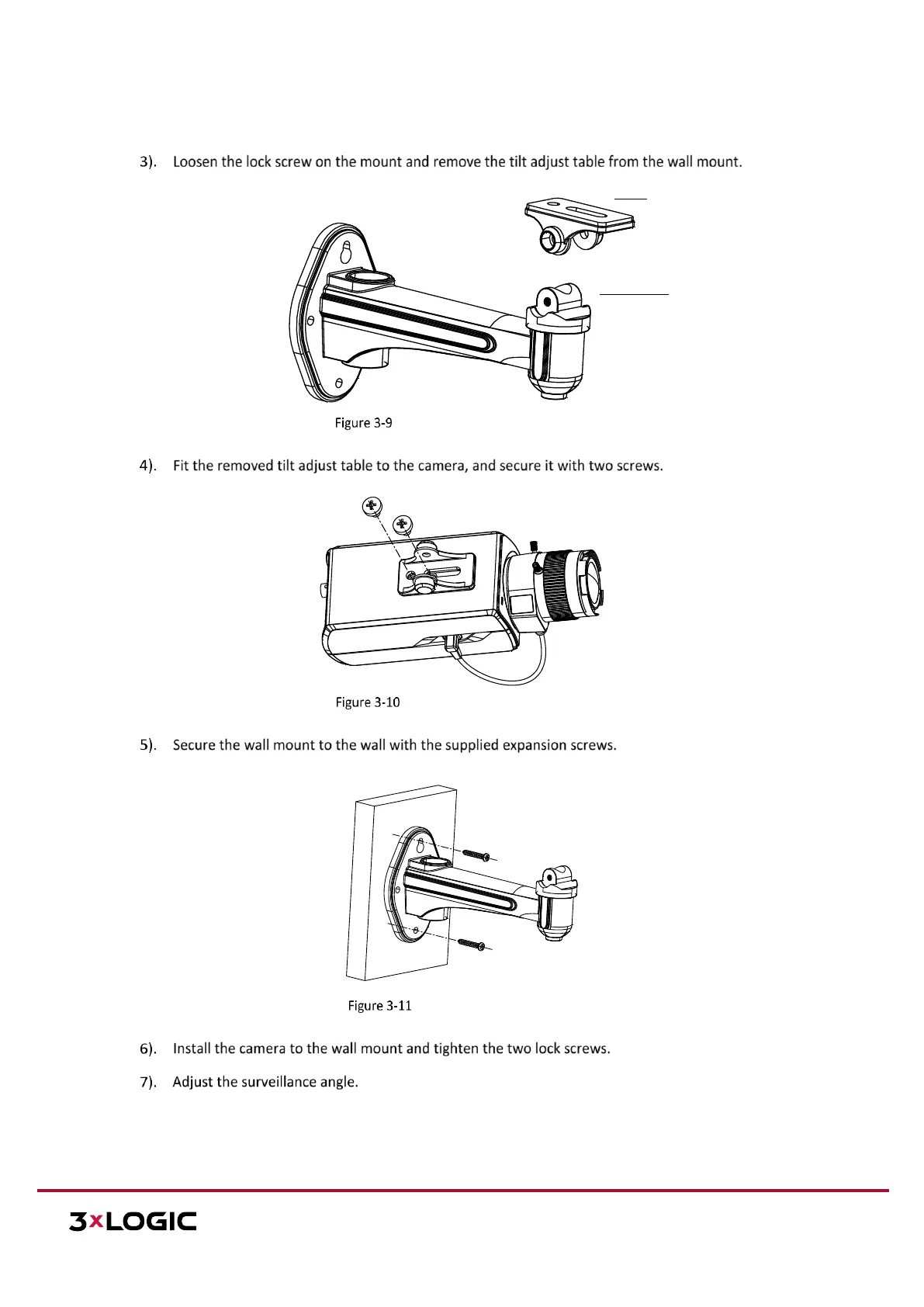

Remove the Tilt Adjust Table

Install the Tilt Adjust Table

Install the Wall Mount

a. Loosen the pan nut to adjust the pan angle [0 °-360°].

b. Loosen the knob on the ceiling mount to adjust the tilt angle [0°-±45°].

Tilt Adjust Table

Lock Screw
