Installation Manual v3.1 | VISIX S-Series Network Camera

12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC

Note: When choosing a wall mounting bracket, you must pay attention to the size of the cap which should

match the mounting base of the camera.

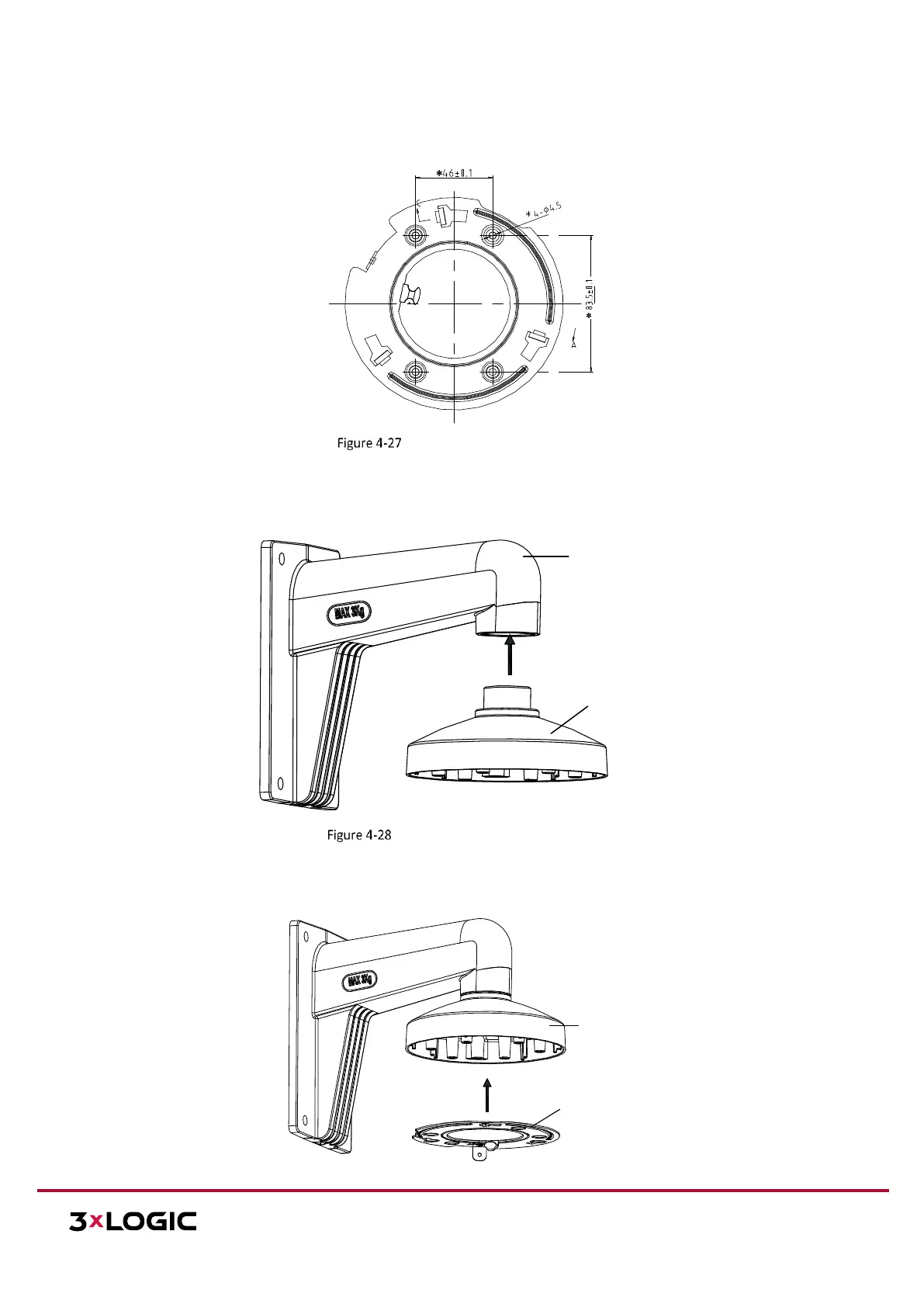

Size of the Mounting Base

Steps:

1. Route the cables, install the wall mounting bracket, and secure the cap on the bracket.

Wall Mounting

Bracket

Cap

Install Wall Mounting Bracket

2. Align the screw holes of the mounting base with the corresponding screw holes of the cap.

Cap

Mounting

Base
