Installation Manual v3.1 | VISIX S-Series Network Camera

12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC

Steps:

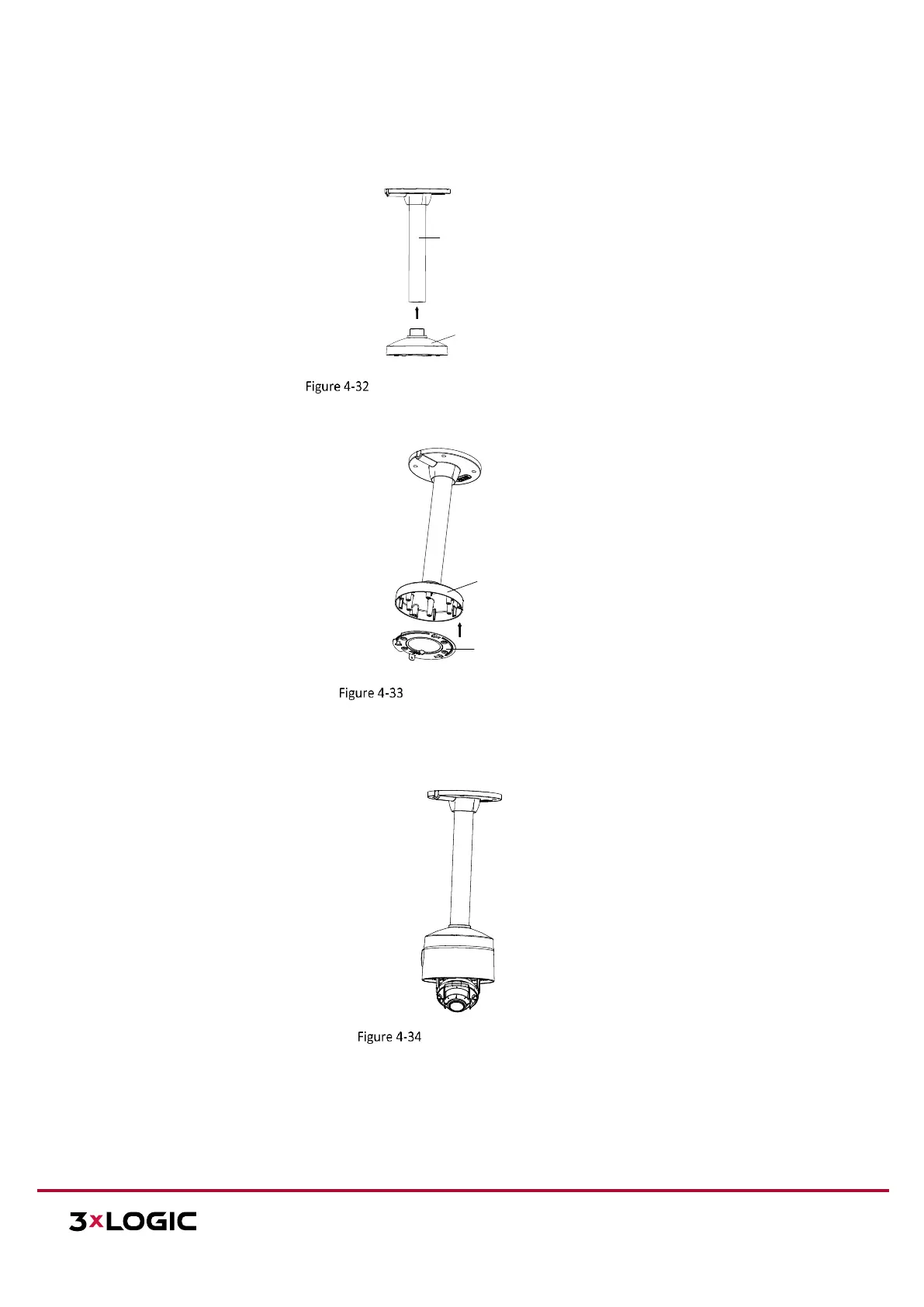

1. Route the cables and install the pendant mounting bracket. Secure the cap on the bracket.

Pendant

Mounting Bracket

Cap

Install the Pendant Mounting Bracket

2. Align the screw holes of the mounting base with the corresponding screw holes of the cap.

Cap

Mounting

Base

Install the Mounting Base

3. Secure the mounting base to the cap with screws.

4. Align the camera with the mounting base, and secure the camera with screws.

Secure the Camera

5. Connect the video output connector to the monitor and connect the power connector to the power supply

to adjust the surveillance angle and image.

6. Adjust the image and focus.

7. Install the dome cover back to the camera and tighten the lock screw to complete the installation.
