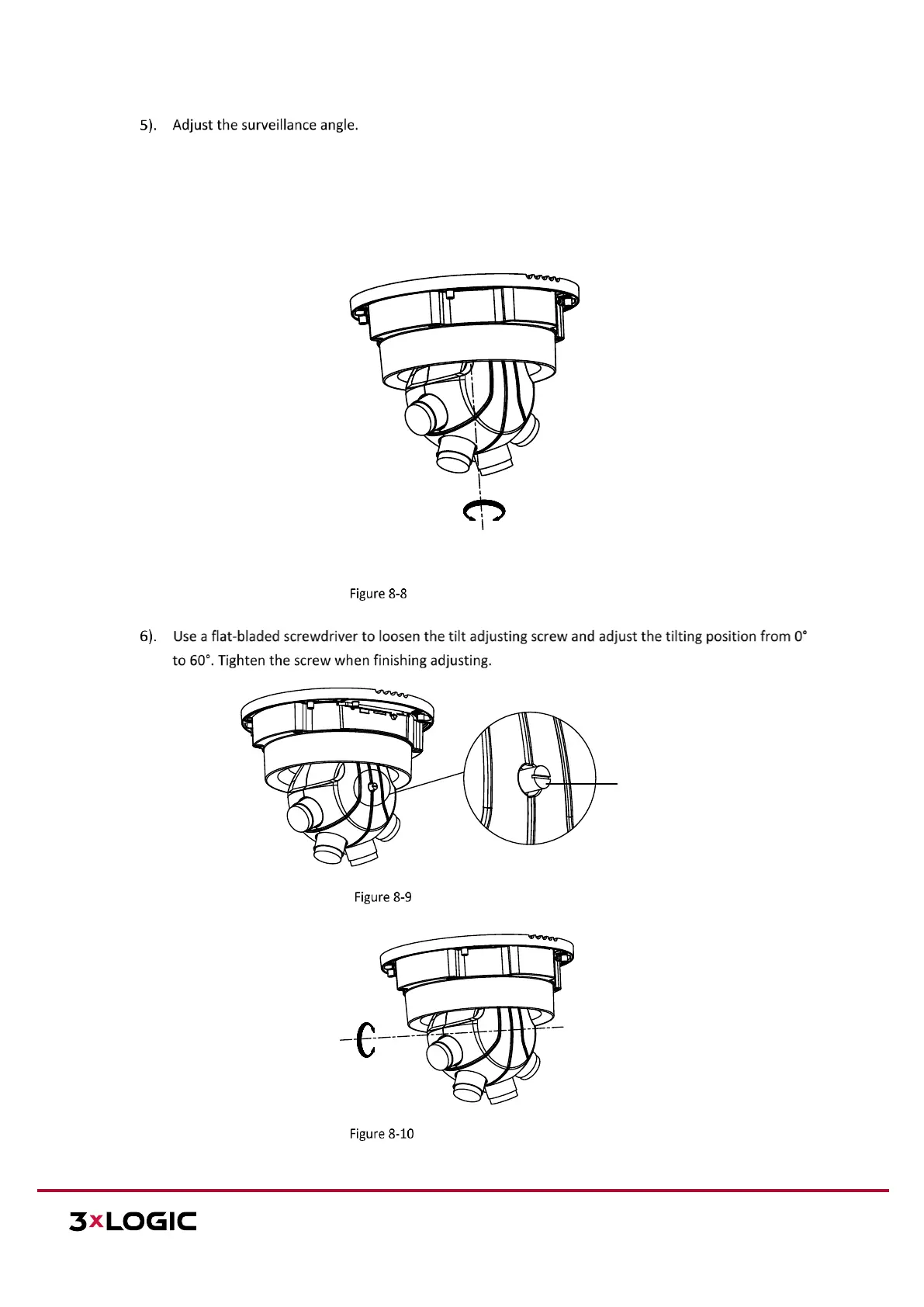

a. Connect the cables and apply power to the camera.
b. View the live view image on your monitor.
c. Adjust the panning position from 0° to 355°.
Pan: 0°-355°
Adjust Panning Position
Tilt Adjusting
Screw
Adjust Tilting Position
Tilt: 0°- 60°
Adjust Tilting Position
