PLDS card
A PLDS card is required for each LDS card to be supplied with remote power. Fuses are
positioned on the PLDS card to select either 40 V or 48 V voltage (48 V as standard unless an
S0 interface supplied with remote power is to be configured on the card).
The remote power is supplied to the LDS card interfaces via the part of the cable terminating with
the J4 connector.

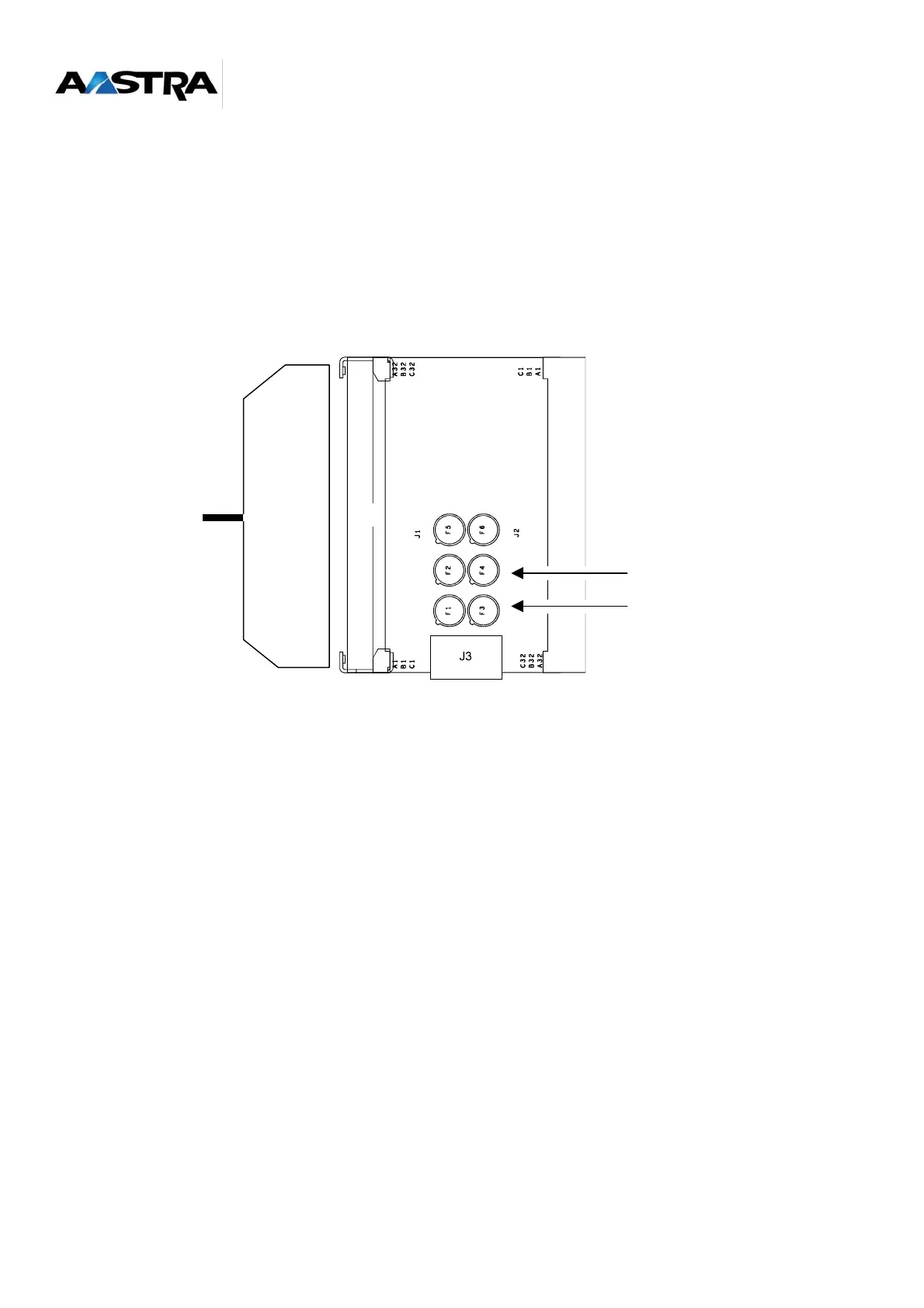

Figure 5-5: Connecting the PLDS card
+
-
J2
J1
40V
48V
For the connection with J4
LDS remote supply cable
RQP cable
