7.6 Examples
7.6.1 F1/F2 or F6/F2 contiguous multi-site configuration
The slave PBX must be synchronized via an inter-site link (2.048 MHz clock).
The base stations must be wired in three pairs (F2 has no synchronization port + LD4/LDS,
LD4NX/LDS combination). The synchronization pair carries the 800 ms clock.
Note:
The LD4X mode (removing the J14 jumper on an LD4NX card and used to implement
additional functions) is only compatible on NeXspan S/L/D with software release R4.1
and above.
(1)
: use a repeater if there are more than 5 slave base stations
(2)
: even in an IP multi-site network, as the IP network is not synchronising, the PBXs must be
connected by a synchronising inter-site link.

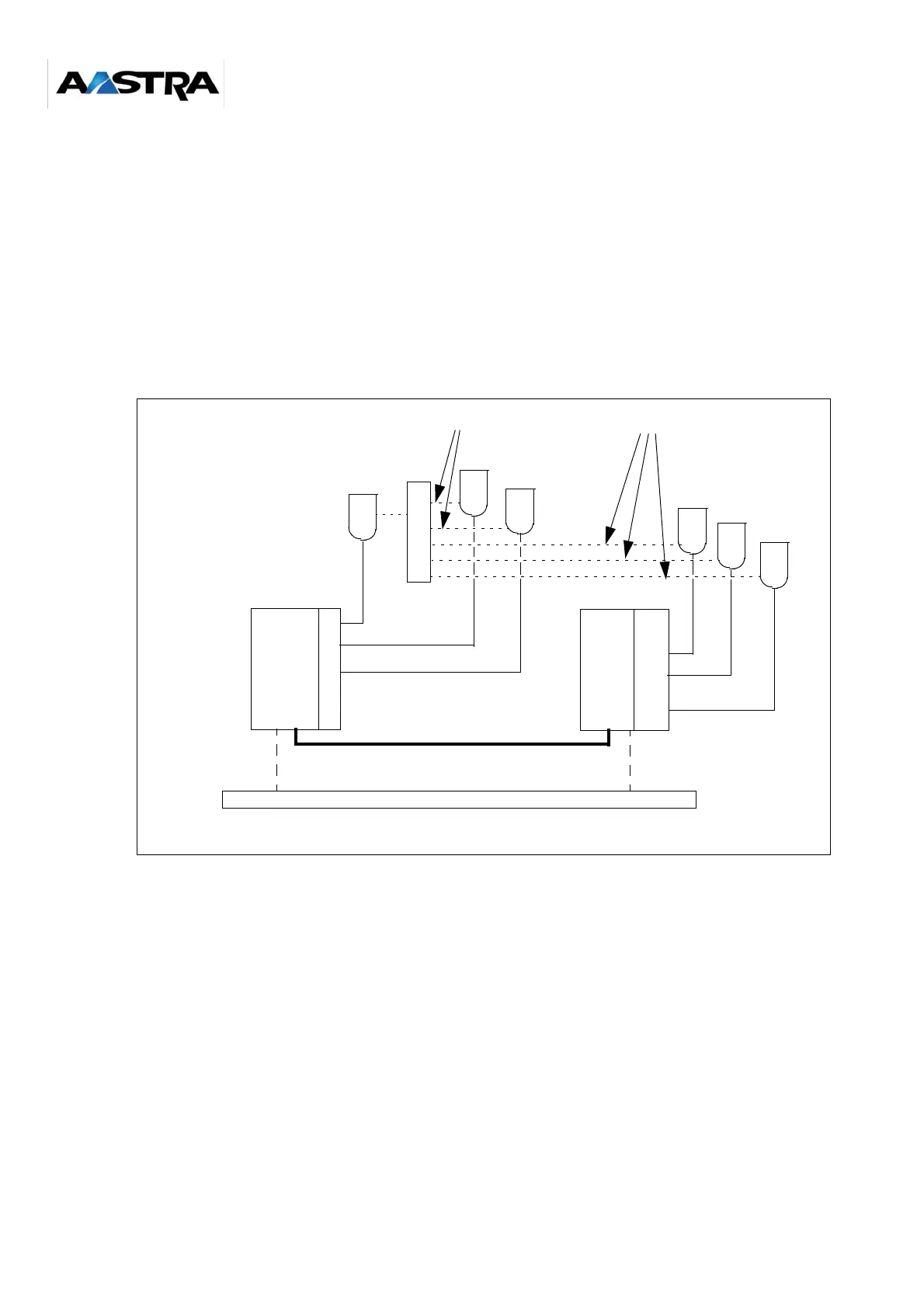

Figure 7-17: F1/F2 or F6/F2 contiguous multi-site configuration
synchronising inter-site link
2.048 MHz clock
R
S
P
F2
L
D
S
F1
or
F6*
L
D
4
or
L
D
4
N
IP network
(2)
master base
slave base
slave base stations
800 ms clock synchro pairs
S0 bus
S0 bus
master PBX
slave PBX
* on F6, base stations can be connected to the front panel of UCT-S cards.
