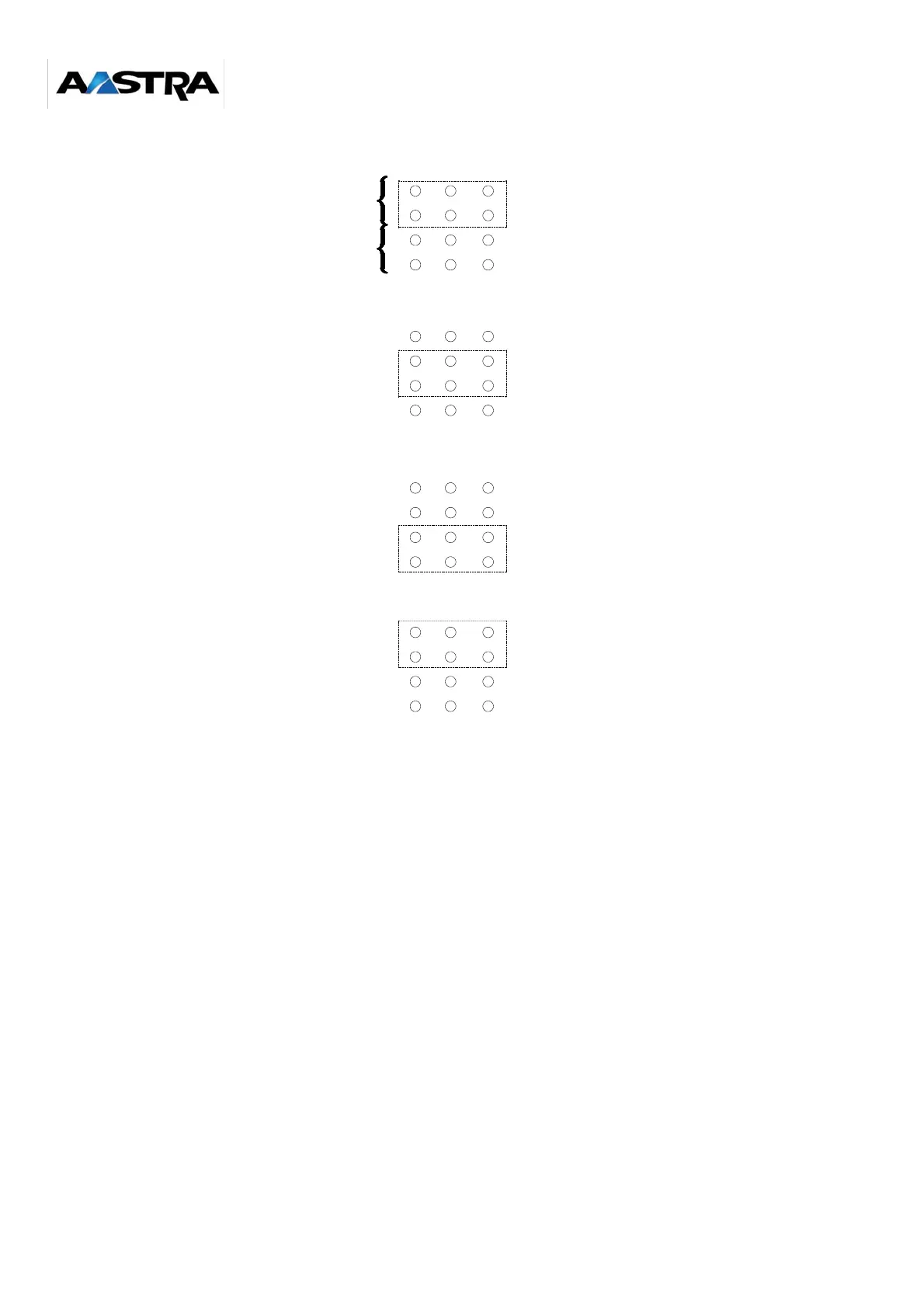

Figure 4-17: Configuring remote power supply of S/T0 to S/T3 accesses
PBX_MATRIX_XS_TELEALIM_ACCESS_01_02
J29xx
J30xx
No remote power supply
48 V Power supply
40 V Power supply (option)
S/T3
S/T2
S/T1
S/T0
UCT FRONT PANEL
No remote power supply
