Depending on the installation position, the maximum ambient operating temperature
may differ. For detailed information, refer to tables LD 810HSE Ex Maximum Ambient
Operating Temperature for Horizontal Installation on page 30 and LD 810HSE Ex
Maximum Ambient Operating Temperature for Vertical Installation on page 31 or to
Specifications on page 24.
2.4.1 Mounting
For installation on a DIN rail (35 mm):
1. Attach the two upper notches to the rail.
2. Press the Linking Device down towards the rail until it locks into place.

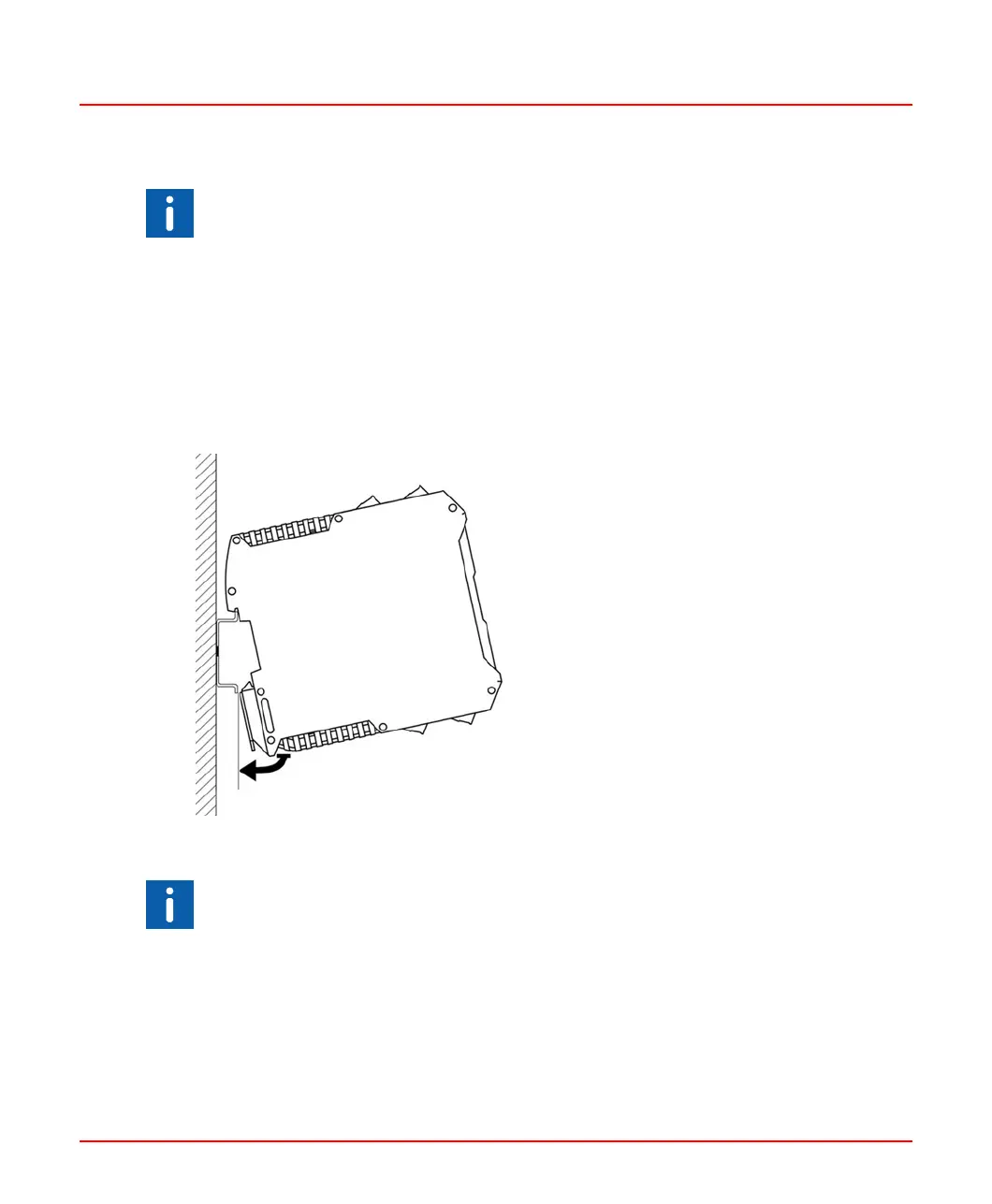

Figure 2.1: Installation
Do not put stress on the system by bending or torsion.
To dismount the Linking Device from the DIN rail:
1. Slide a screw driver horizontally underneath the housing into the locking bar.
2. Slide the bar downwards - without tilting the screw driver - and fold the device
upwards.
2PAA114135-610 29
2 Hardware Installation
2.4 Mounting and Dismounting
