Process Station ABB FieldController 800
21

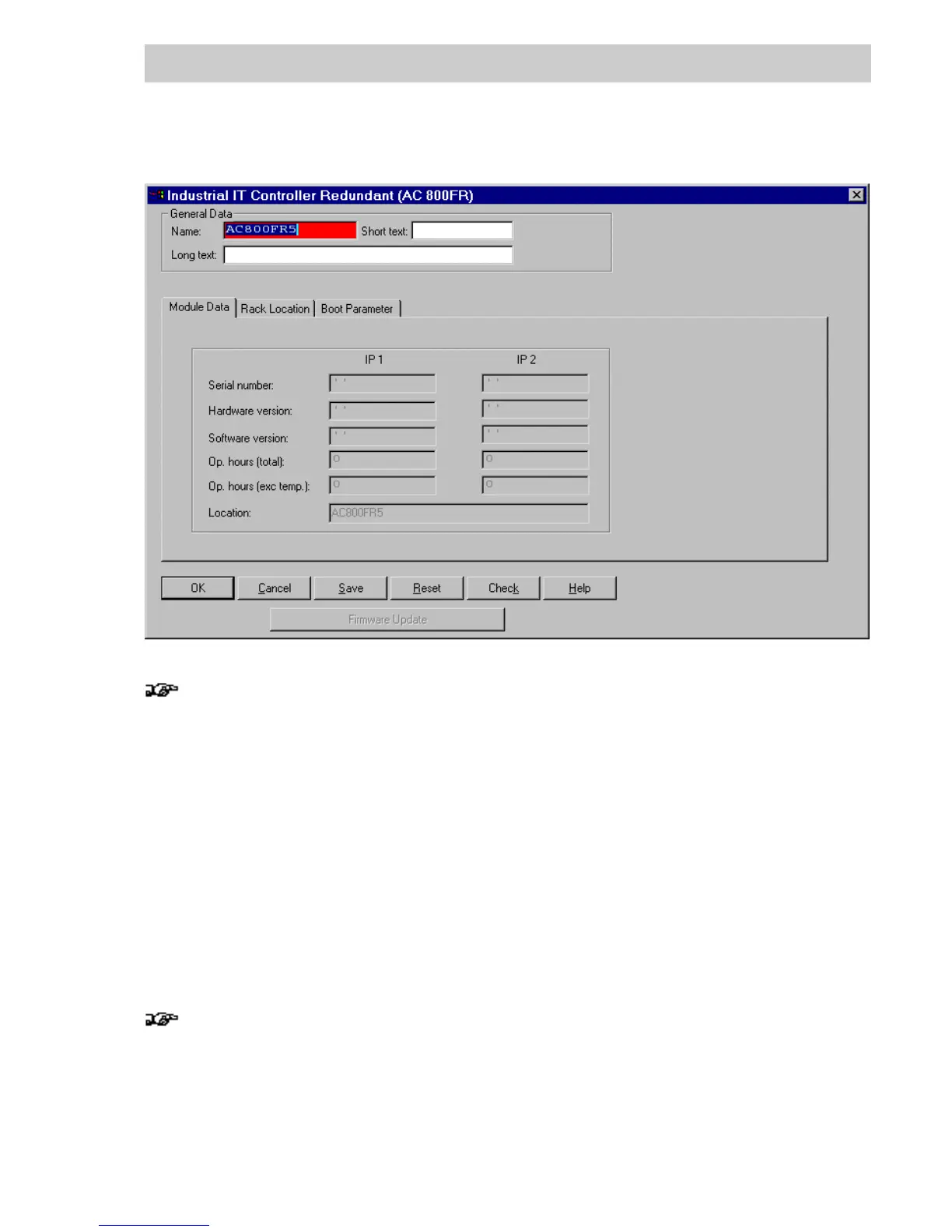

5.4.1 Module data of AC 800F
The module service data is only displayed during commissioning if a communication con-
nection to the process station or FieldController exists at the same time.
See also Engineering Manual, System Configuration, Commissioning.
Serial number Displays the sequential serial number from production.
Hardware version Displays the hardware version of the FieldController.
Software version Displays the I/O EPROM version.
Operating hours
(total) Displays the total number of operating hours.
(Excess temp.) Displays the number of operating hours at excess temperature (excess
temperature in FieldController means : over 70 °C).
Location Allocated resource
These values are only available in commissioning mode.
In the commissioning mode the "Firmware update" button appears for loading the firmware
into the Flash EPROM.
