Process Station ABB FieldController 800
30
6 Commissioning of AC 800F

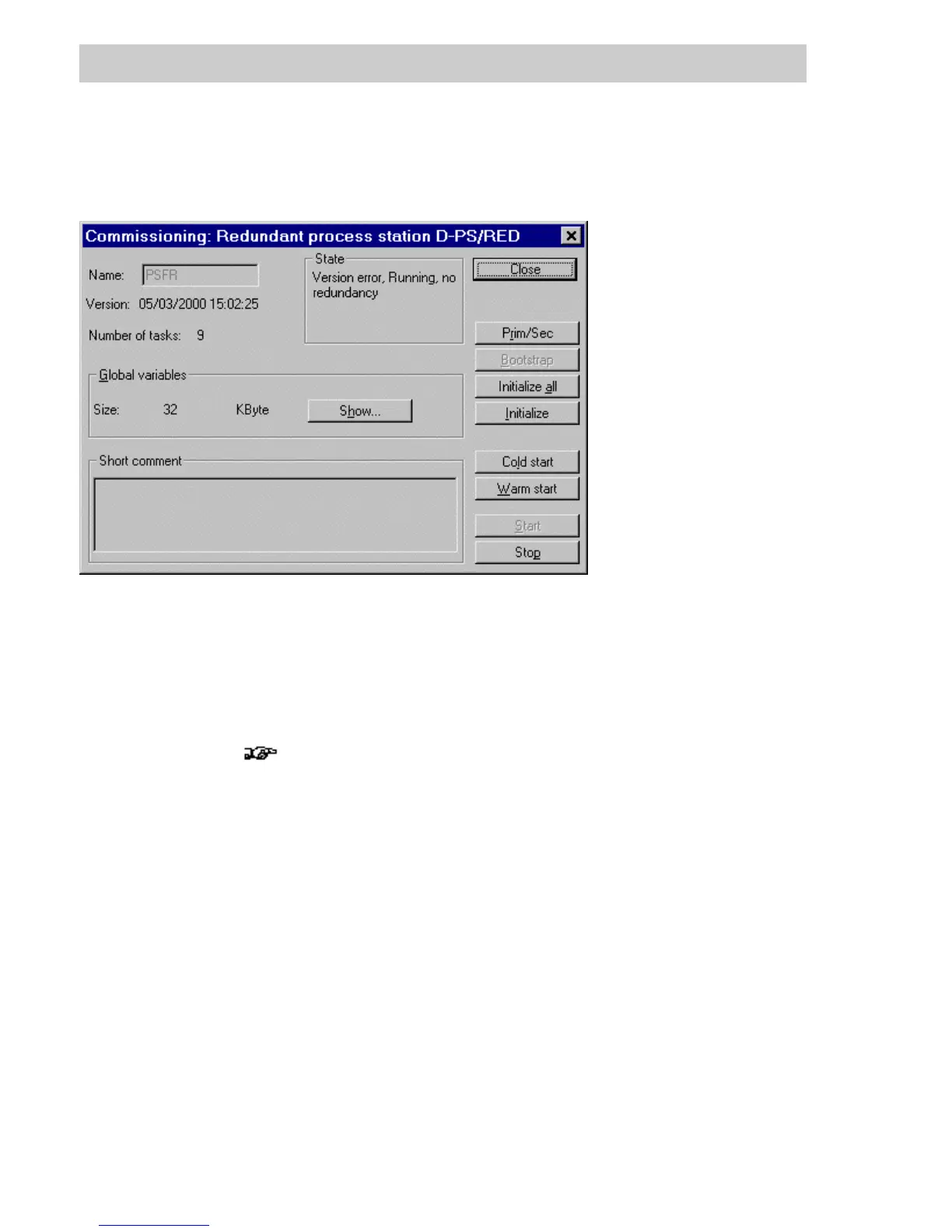

6.1 Operating via resource AC 800F
PRIM/SEC For redundant FieldControllers a redundancy toggle is initiated (toggle be-
tween Primary and Secondary CPU). A toggle is possible only in SYNC
status.
B
OOTSTRAP The FieldController is loaded with the operating system and is initialized. In
the case of redundancy only the Primary is loaded with the operating system.
In a FieldController there is no automatic adjustment of the operating
system after the process station has been loaded! When using the
FieldController a corresponding operating system version must al-
ready be loaded on this FieldController.
INITIALIZE ALL The FieldController is deleted. General reset means that the user program
is deleted. The operating system is not executed. In the case of redundancy
both FieldControllers are reset. The Primary CPU becomes active first and
can then be bootstrapped again. After I
NITIALIZE ALL the redundancy is no
longer active. The operating system in the Secondary is restarted after the
user program has been loaded.
