ABB AC 800F

Process Station ABB FieldController 800
32
6.2 Task

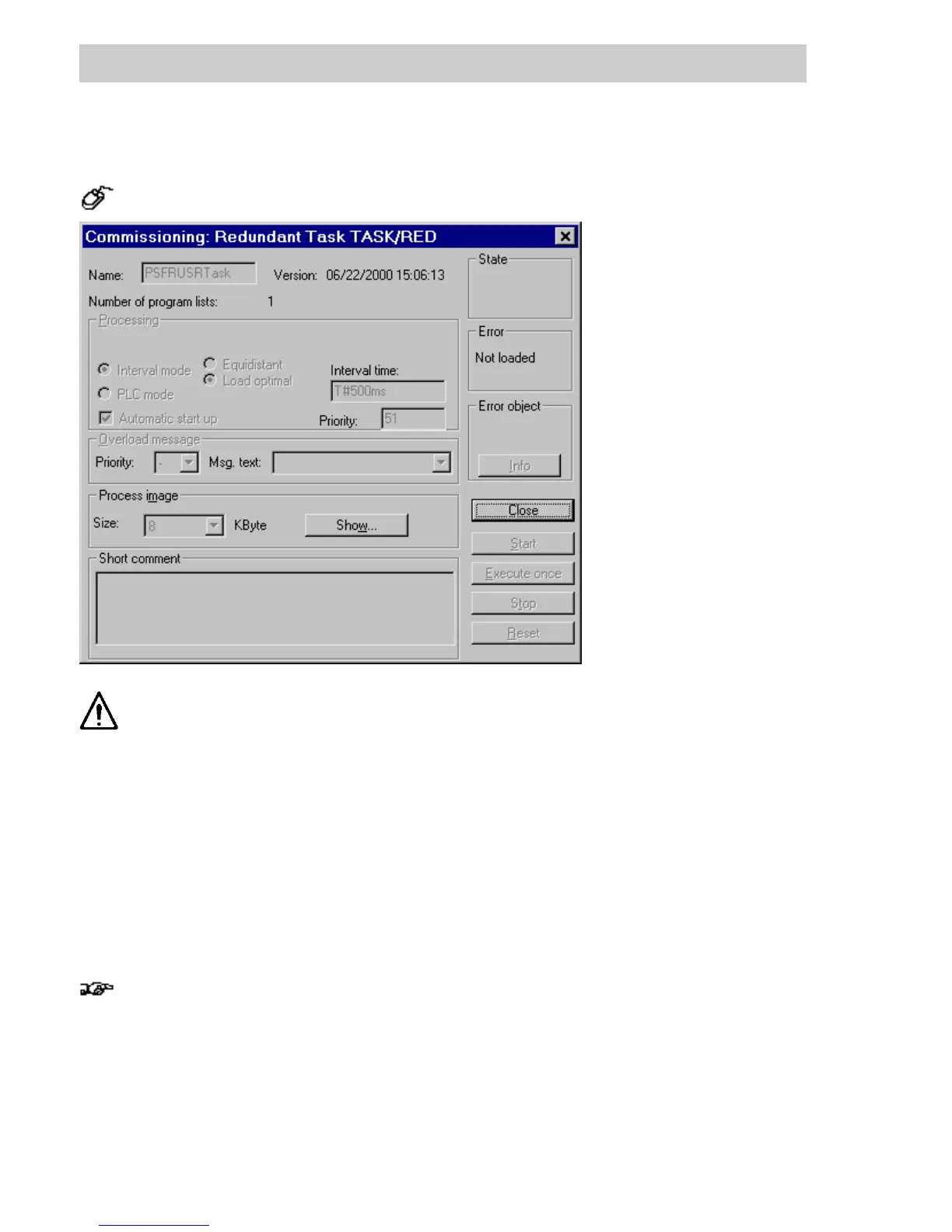

Select project object task → Project → Header
If configured for autostart, the task starts automatically when the resource is started. All
lower-level program lists and programs start along with the task as long as the program list
parameter has been set ON.
Task states are explained on page 38. For further information on tasks see Engineering Manual,
System Configuration, Project Tree.
S
TART The selected task is started. It is processed either in the cycle or as soon as
possible (SPS mode), depending on configuration.
EXECUTE ONCE The selected task is executed precisely once. Task subsequently reverts to
the stopped state.
STOP The selected task is stopped.
TaskcanalsobestoppedbyusingtheRUN/STOPswitchontheFieldCon-
troller.
R
ESET Current task reverts to the configured state.
C
LOSE Exits the dialog box and returns to project tree.
S
HOW... Selected task’s process image is displayed. Process image size can be
configured. Process image is displayed automatically when the operating
system is loaded.
