Process Station ABB FieldController 800
41

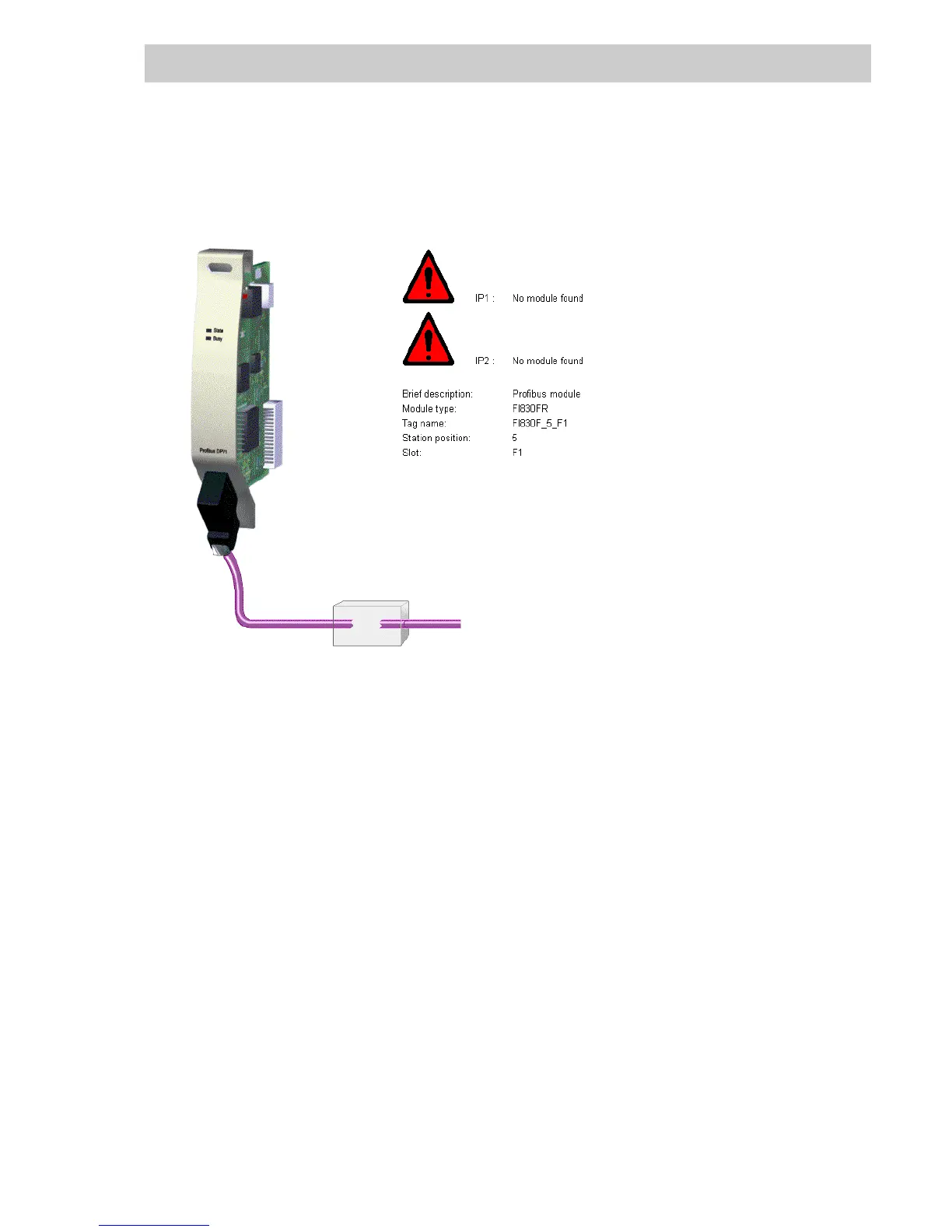

6.5.2 Module state in the system and station views
The modules in the FieldController modules are displayed in various different colors according to
their current state.
Color and state
transparent
(rear view) There is no module configured in this slot, nor is any module installed in the
station.
gray The module is configured and the correct module type installed.
red A module is configured in this slot, but not present in the FieldController.
yellow A module (e.g. type FI 830F) has been detected as installed in this slot, but
no configuration is available.
orange The module type configured in the hardware structure (e.g. FI 830F) does
not match the installed module type (e.g. 810F).
