ABB AC 800F

Process Station ABB FieldController 800
40
6.5 State displayed in the hardware structure
After loading the resource in the FieldController, the system or FieldController knows which mod-
ules and field devices are configured. The components (modules, devices) themselves may not
have been installed yet, or the position of the installed component may not match the positions
(slots) or bus addresses configured. Such errors are signaled by colored state information.

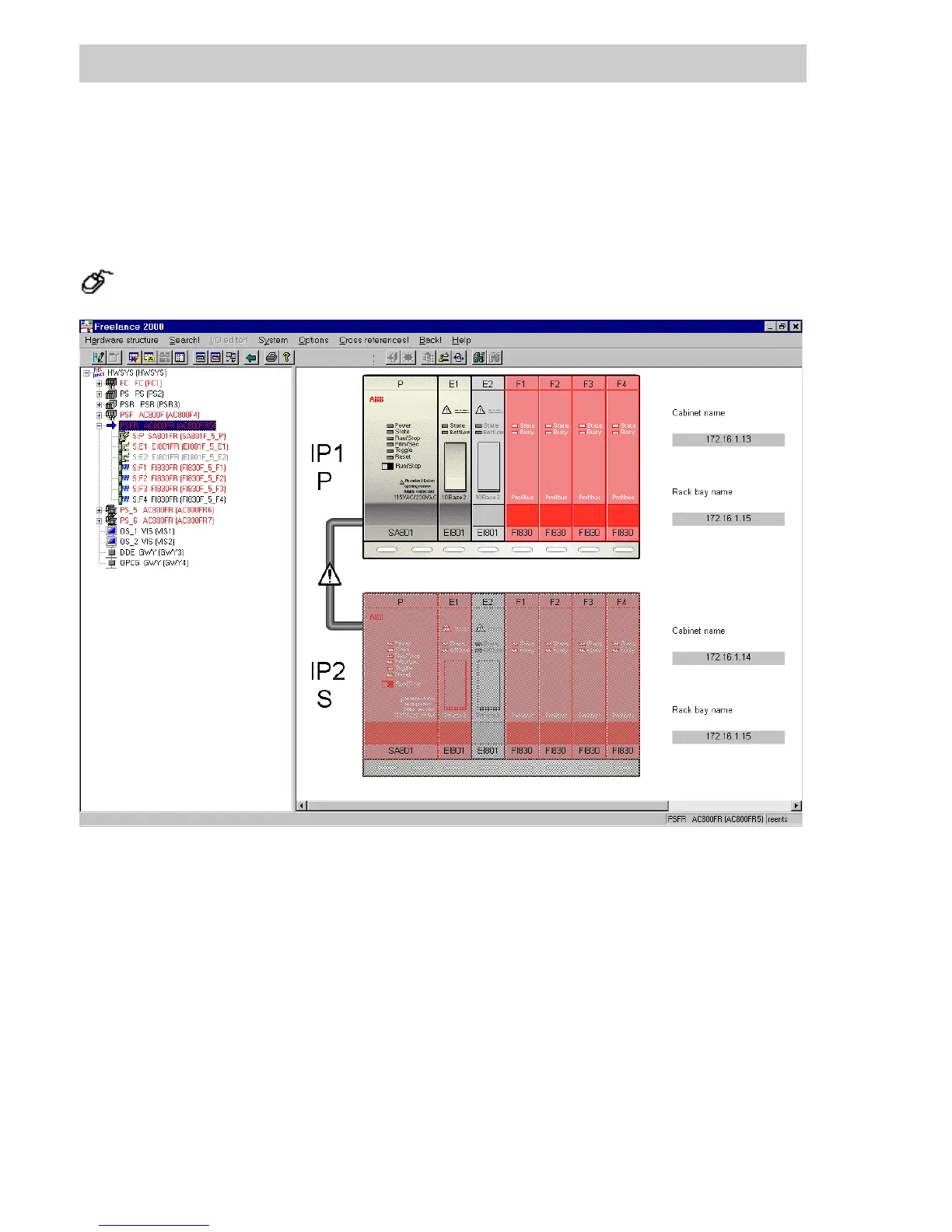

System → Hardware structure
6.5.1 State in the tree view
In the tree view, state information is shown thus: active (black), faulty (red) and inactive (gray).
The color coding is applied to the object information (text) rather than the icon.
