ABB AC 800F

Process Station ABB FieldController 800
33

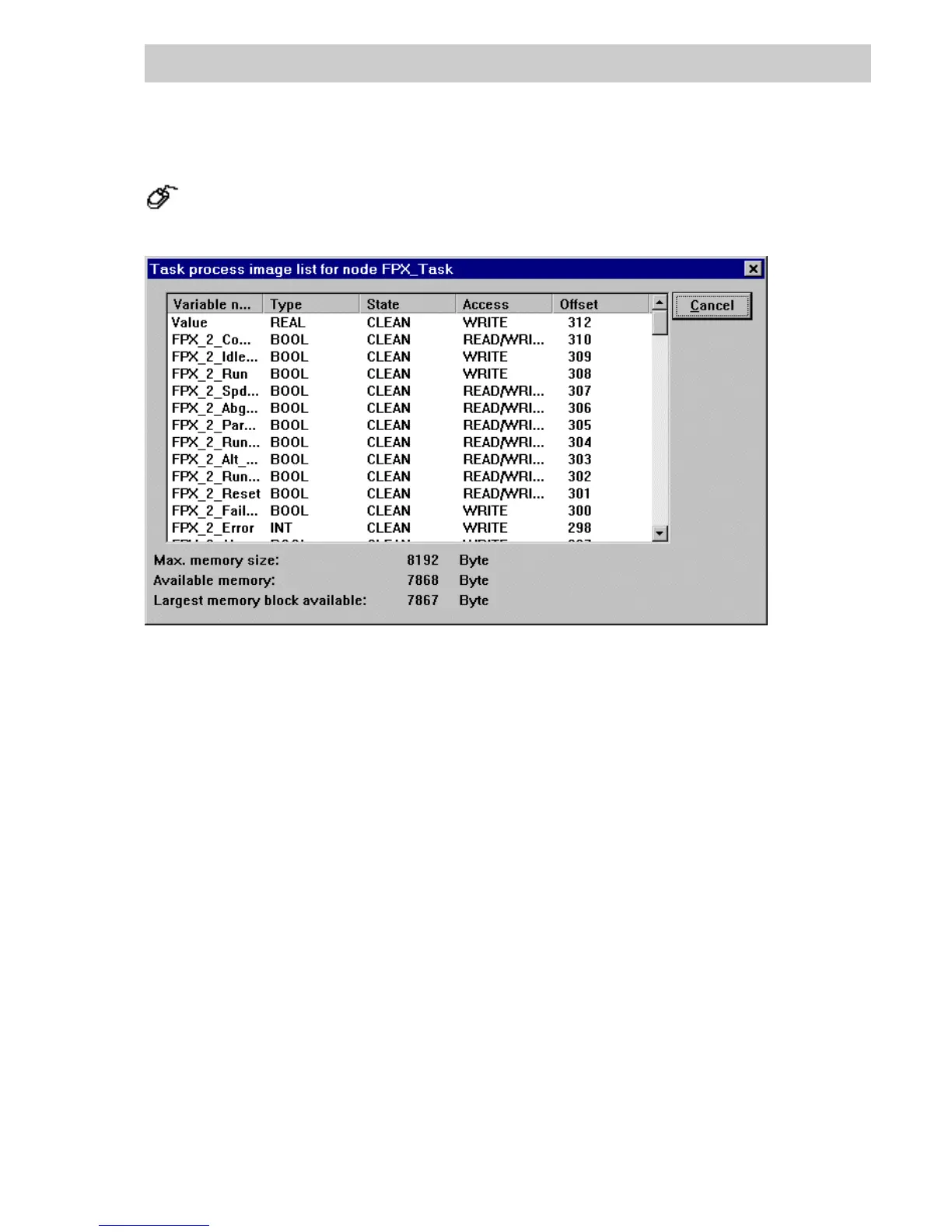

6.2.1 Process image display
Select project object task → Project → Header
→ SHOW...
Variable name Variable name, max. 16 characters
Type Data type, e.g. REAL, BOOL, UINT etc.
State CLEAN Object is correct and loaded.
DIRTY Object version in engineering station does not match object ver-
sion in the station.
CREATE Object not yet loaded into station.
DELETE Object deleted in project database, but still present in station.
Access READ read-only,
WRITE write-only,
READ/WRITE read and write.
Offset Memory address offset
See also Engineering Manual, System Configuration, Process Image.
