10 CDP CONTROL PANEL
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 144/184
10.3.4 Functions mode
The functions mode is used to set the display contrast.
Figure 10-4: Control panel - Functions mode
10.3.4.1 Adjusting the display contrast

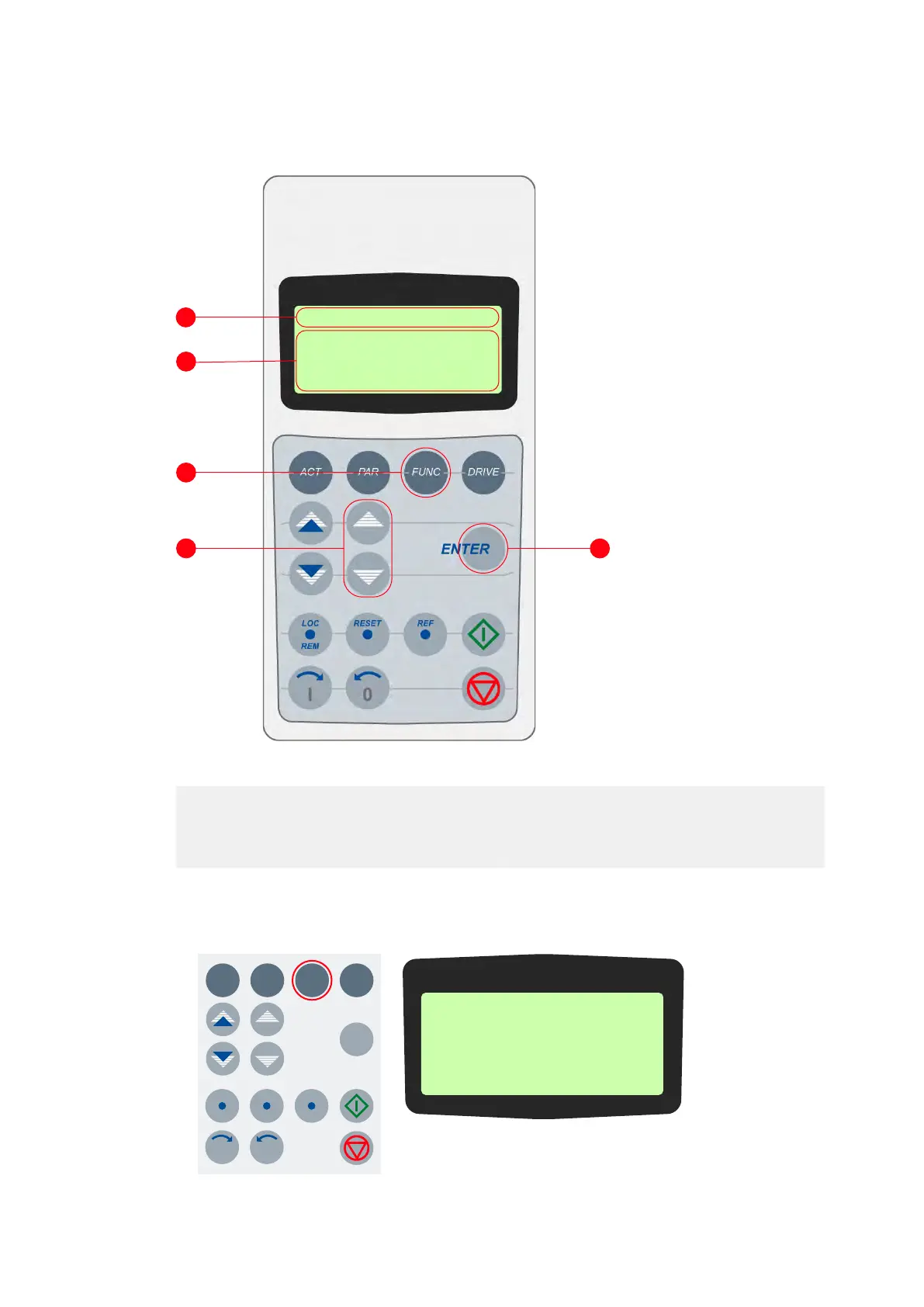

1. To enter the functions mode, press the FUNC key:
(1) Status line
(2) Selectable functions
(3) Selection key for functions mode
(4) Slow navigation key for selecting a line (and
adjusting the contrast)
(5) Enter key for confirming the selection
1
2
3
4
5
1 L -> 0.0 rpm 0
UPLOAD <= <=
DOWNLOAD => =>
CONTRAST 4
1 L -> 0.0 rpm 0
UPLOAD <= <=
DOWNLOAD => =>
CONTRAST 4
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
