10 CDP CONTROL PANEL
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 149/184
10.5.2 Entering a reference value
Entering a reference value from the CDP control panel is possible in:
- Local control mode L
- Remote control mode R

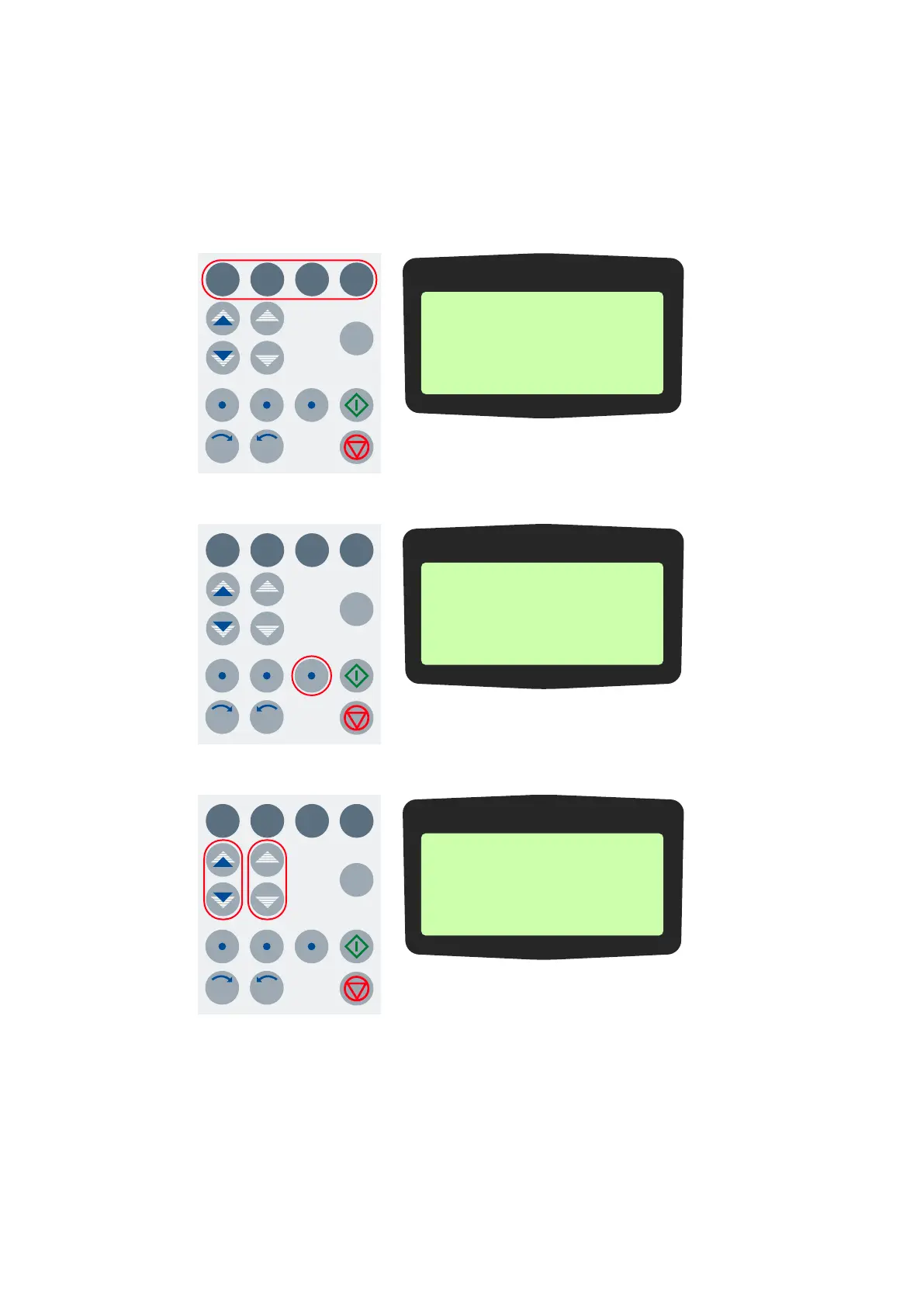

1. Press a mode selection key.
2. To enter the reference value input mode, press the REF key.
3. To enter / change the reference value, press the corresponding fast or slow navigation key.
1 L -> 600.0 rpm I
Status Running
MotorSpeed 600.00 rpm
Power 75.0 %
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> [600.0 rpm] I
Status Running
MotorSpeed 600.00 rpm
Power 75.0 %
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> [550.0 rpm] I
Status Running
MotorSpeed 600.00 rpm
Power 75.0 %
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
