05 TRANSPORTATION, STORAGE AND DISPOSAL
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 71/184
5.4.3 Cabinets without redundant fan unit
- Use lifting equipment (eg, web slings, chain slings, round slings, safety hooks, shackles)
that corresponds to the weight of the cabinet.
- Attach a sling to the outer fastening holes of the rails (arrows in Fig. 5-1).
- The rails can be removed after the cabinet has been installed at its final location.
- To attach a sling, use appropriate safety hooks or shackles.
- Maximum slope angle is 60° (1 in Fig. 5-1).

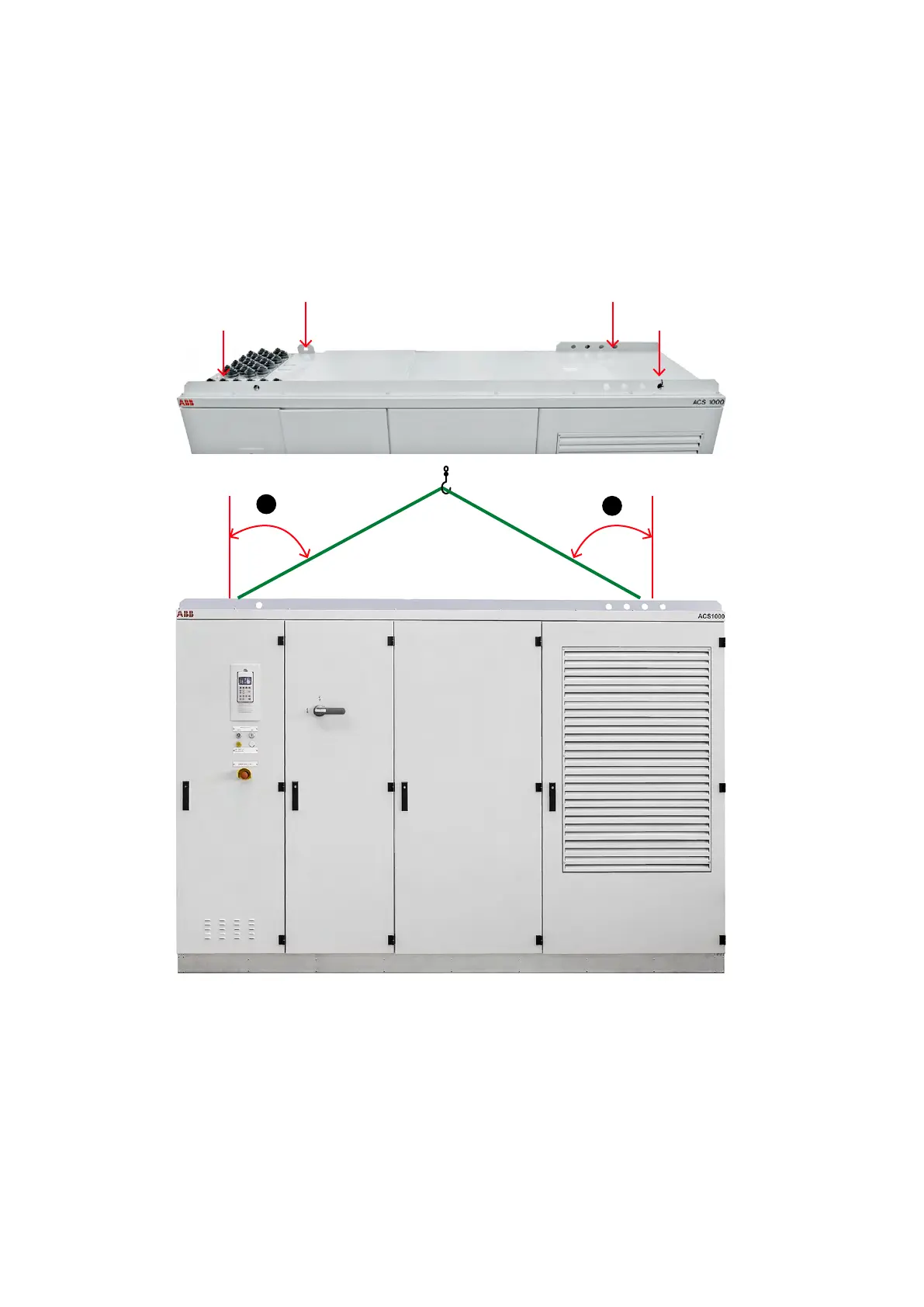

Figure 5-1: Transporting the cabinet by crane
- Lift the cabinet slowly and steadily to the required clearance height maintaining the cabinet
in upright position.
- Check the horizontal position of the cabinet. Reposition the slings if necessary.
1
1
60° 60°
