11 PREVENTIVE AND CORRECTIVE MAINTENANCE
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 170/184
11.6.9 Cleaning and replacing filter mats
▲ WARNING ⚠

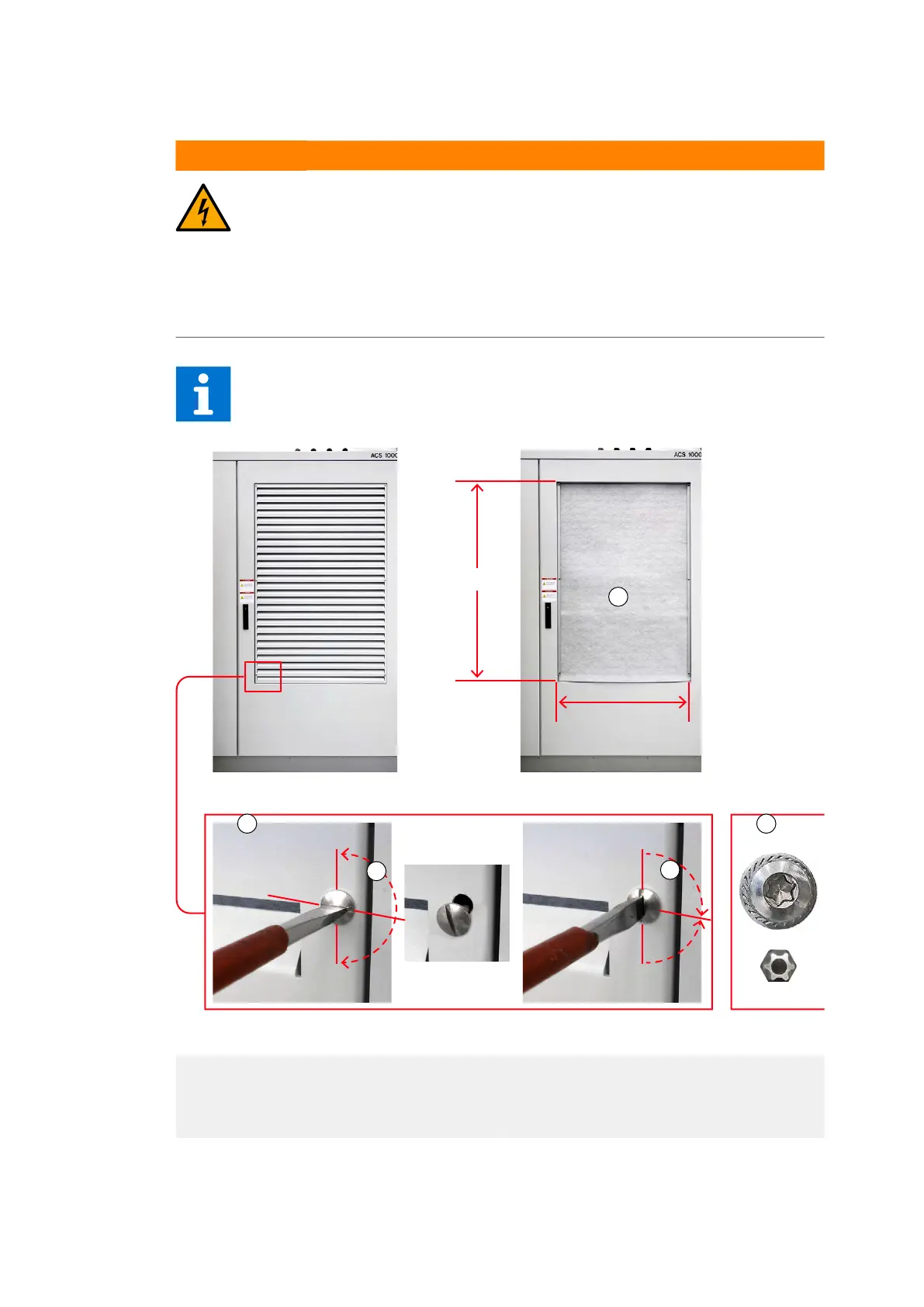

Figure 11-5: Cleaning and replacing filter mats
Hazardous voltage!
When removing the filter mat while the drive is in operation, observe the following:
- Make sure that objects like wires or screwdrivers do not enter into the air
intake. These objects can cause fatal short-circuits.
- To prevent foreign matter entering, do not discontinue work for a longer
period.
For information on inspection and replacement intervals, see "ACS1000 preventive
maintenance schedule" [1].
(1) Filter
(2) Panel fasteners
(3) Unfasten
(4) Fasten
(5) Torx screw option
818 mm
T30
1228 mm
1
2
3
4
5
