Mechanical installation of non-pre-assembled units (ACS800-04M)
56
Bottom exit shroud
Step drill lead-
throughs for the
busbars.

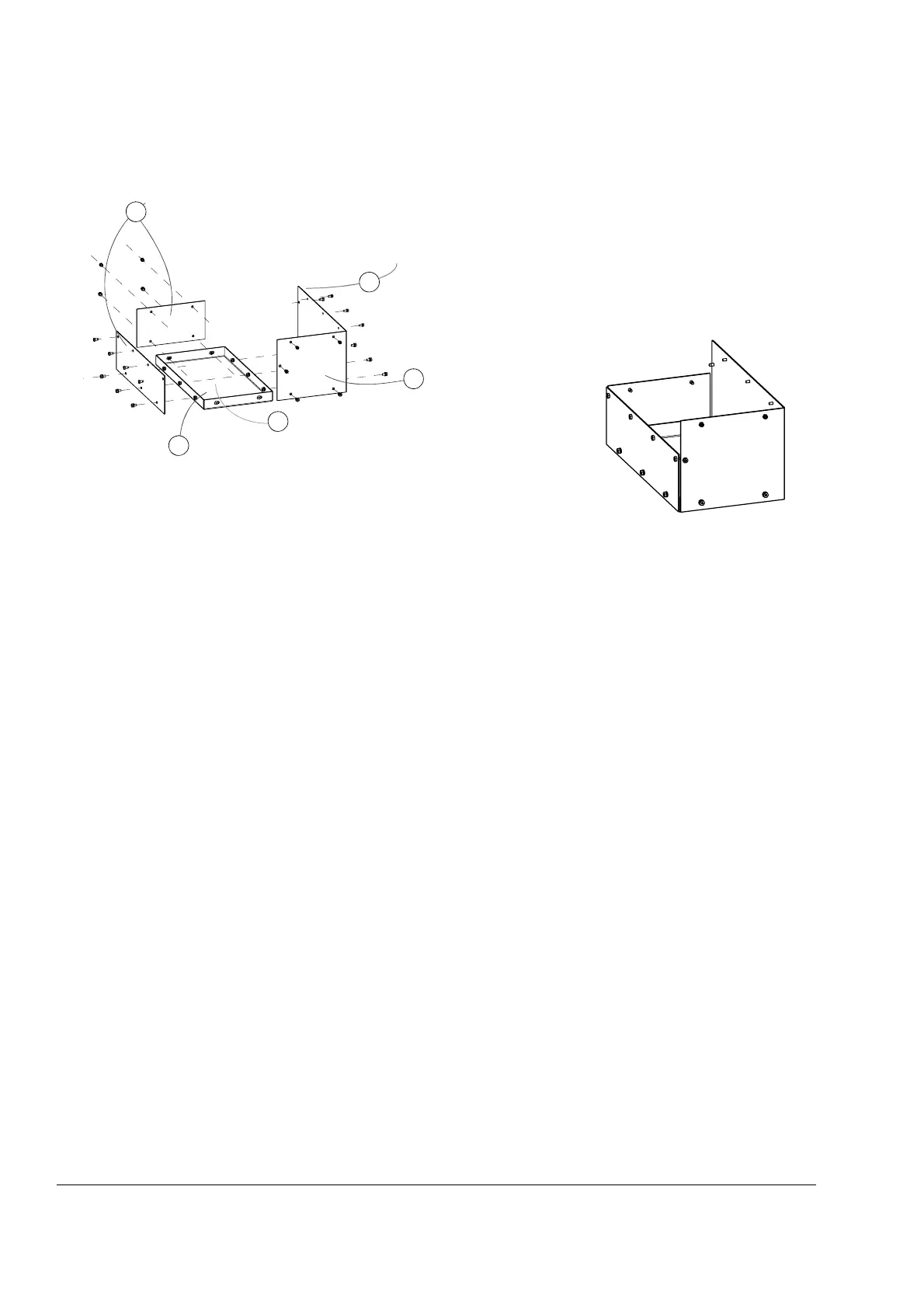

1
Remove the protective film from all parts.
2
Fasten the L-plate to
the drive module.
Fasten the side plates to the
drive module.
Fasten the bottom to
the shroud
3
4
5
