4-22 AC 80 User’s Manual
PC Elements Each device on the Panel/Printer link needs to be individually
configured in the PC section of the application program.
CDP 80 control panel communication is controlled by the PANC
element. (The PANBUS element must have the following terminal
values: SPEED: 19200; CHLEN: 8; PARITY: NONE.)

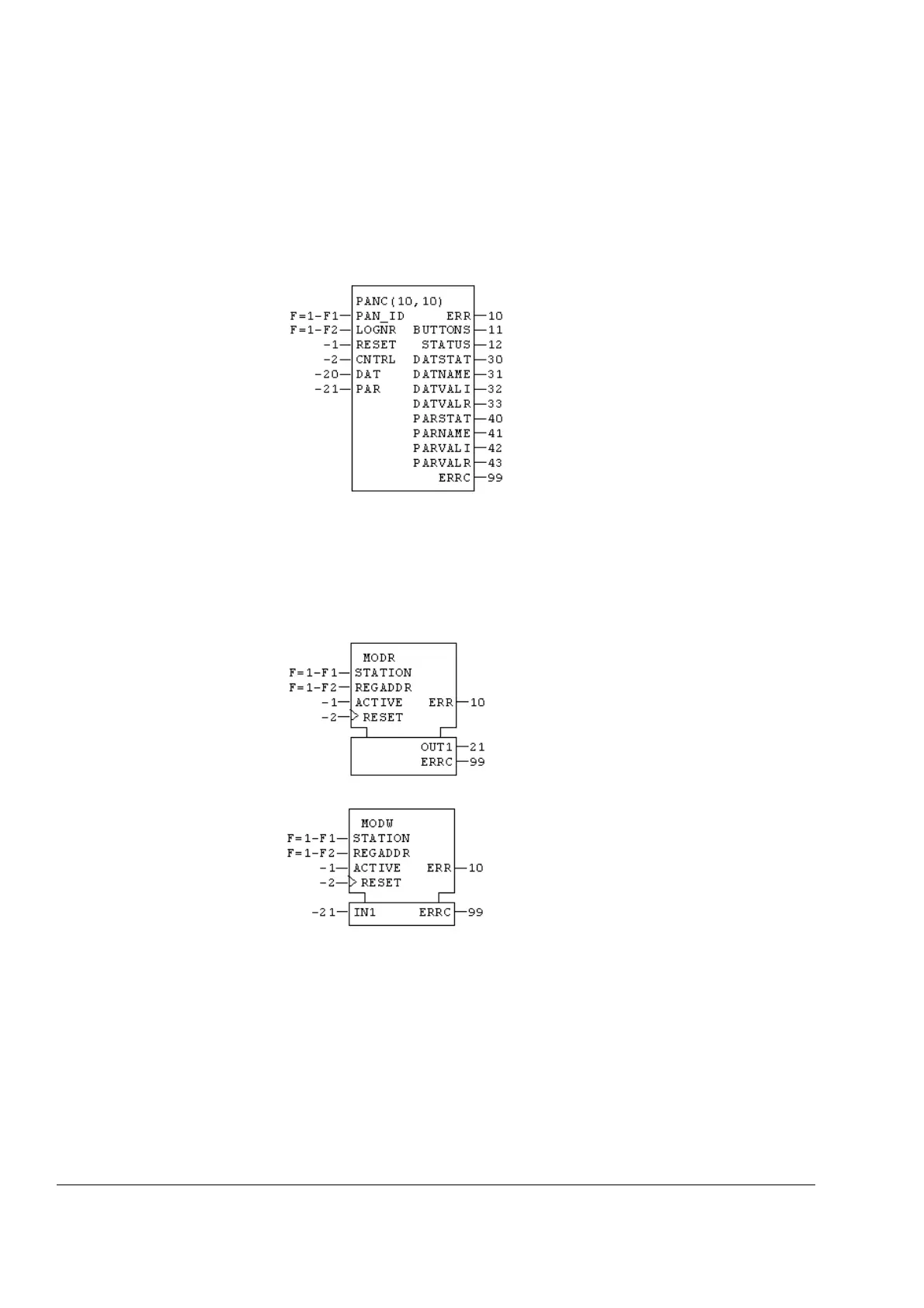

Figure 4-16 The PANC PC element, used for controlling one CDP 80
Control Panel.
Other Panelbus devices use the MODR (Modbus Read) and MODW
(Modbus Write) elements:
Figure 4-17 The MODR and MODW PC elements, used for reading
data from and writing data to a remote device through the Panel/Printer
link.
