CONTROLMASTER CM10 | UNIVERSAL PROCESS CONTROLLER,  DIN | CI/CM10-EN REV. C
6 Operator level menus
Autotune
Adjust
Setpoint Select
Alarm Acknowledge

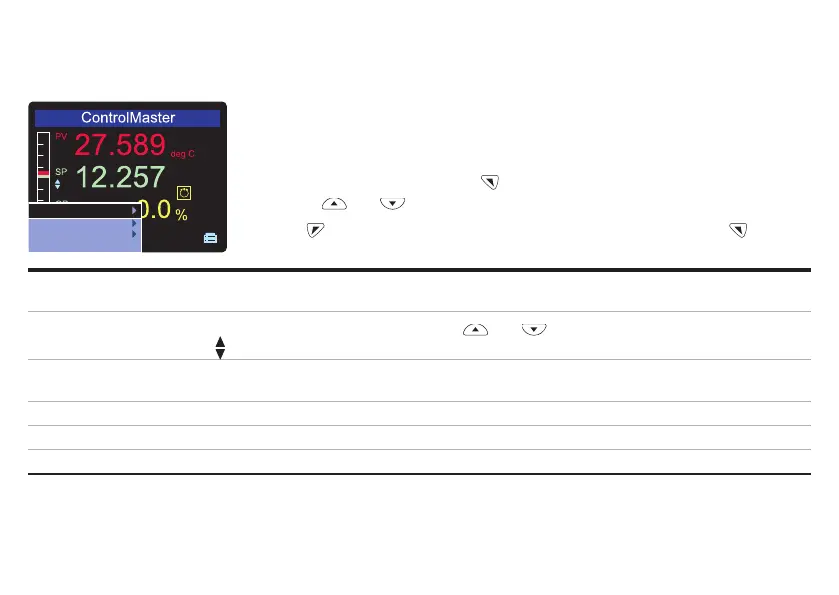

Operator level menus are used to adjust setpoint(s) and output(s), select setpoints,
select the view and to enter Basic and Advanced modes (via the Access Level).
To access Operator Level menus:
1 From the Operator Page, press
to view the available menus.
2 Use the
and keys to scroll through the menus and menu options.
3 Press
to expand menu levels and to select menu options or press to return
to the previous menu.
Autotune Used to start or stop an Autotune routine.
This menu is enabled only if Autotune mode is On.
Adjust
Enables a value to be adjusted using the
and keys.
The
icon next to a value indicates the current adjustable selection.
Setpoint Select Selects the local setpoint to be used
(displayed only if more than 1 local setpoint is configured).
Alarm Acknowledge Acknowledges any active but unacknowledged alarms.
View Select Selects the Operator view to be displayed.
Enter Advanced Level Displays the Access Level selection views.
