ABB ControlMaster CM10 Commissioning Instructions

CONTROLMASTER CM10 | UNIVERSAL PROCESS CONTROLLER,  DIN | CI/CM10-EN REV. C
11
Mounting
ControlMaster CM10 is designed for panel mounting.
For NEMA4X protection, a panel thickness of 2.5 mm
(0.1 in) is required.
Referring to Figure 3:
1 Cut a hole of the correct size for the controller in the
panel.
2 Insert the controller into the panel cut-out.
121 (4.8)
141 (5.5)
50 (2.0)
20 (0.8)
14 (0.55)
≥30 (1.18)
45
(1.8 )
+0.6
–0
+0.02
–0
91.8
(3.6 )
+0.8
–0
+0.03
–0
91.8
(3.6)
97
(3.8)

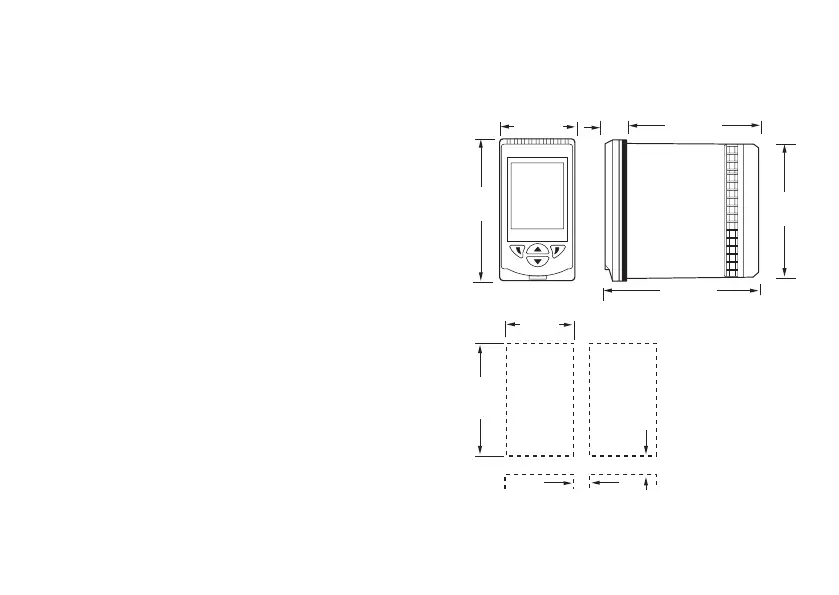

Panel cut-out dimensions
Figure 3 Mounting dimensions
