20
CONTROLMASTER CM10 | UNIVERSAL PROCESS CONTROLLER, DIN | CI/CM10-EN REV. C
8 Diagnostics messages
The controller is programmed to display diagnostics
messages that provide information on servicing
requirements and any other conditions that develop
during operation.

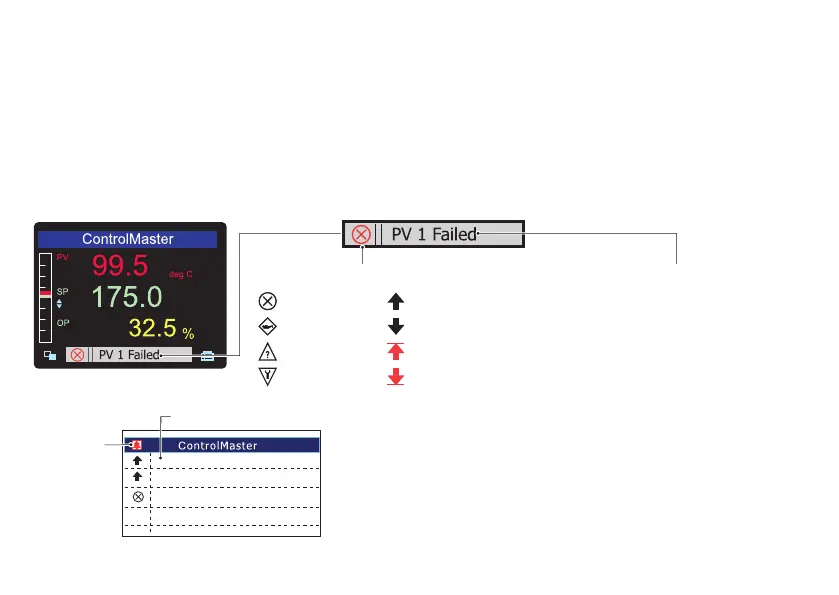

When a diagnostics condition is detected, the
associated NAMUR Icon, together with the highest
priority diagnostics message are displayed in the
status bar when in operator view. A list of all currently
active diagnostic alarm states are displayed in the
diagnostic view.
Failure
Maintenance
Out of spec
Check function
Description of diagnostic or alarm tag.
The highest priority diagnostic or alarm
is displayed. Other active diagnostic/
alarm states can be viewed on the
Diagnostic View – see below.
High process alarm
Low process alarm
High latch alarm
High latch alarm
NAMUR (NE107) status icon
Hig h Tem p
PV1 Failed
Hig h Tem p
Alarm
icon
Diagnostic description/alarm tag
