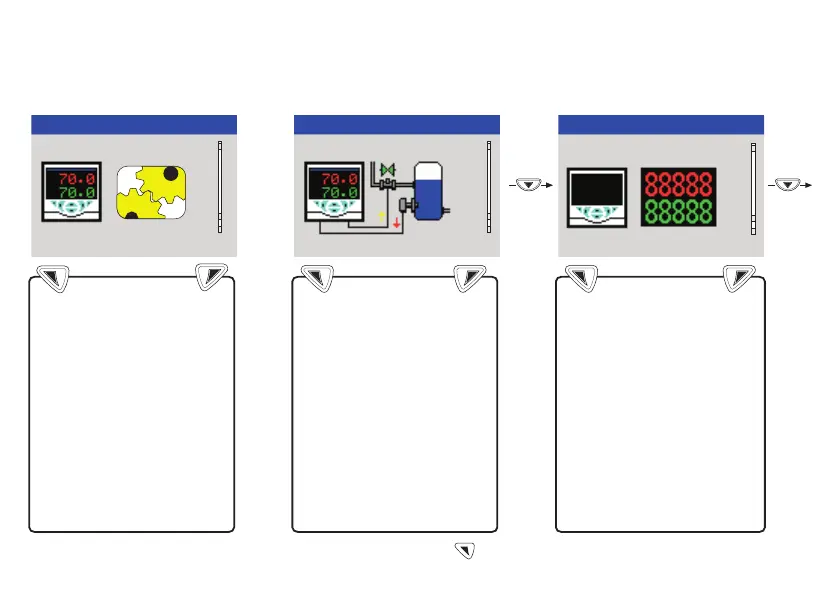

9 Instrument menus
Basic level Advanced level
Menu Menu Menu
Basic Setup
Exit Select
Device Setup Display
Loop 1 Setpoints
Local Setpoint 1 (4)
RSP Ratio
RSP Bias
Ramp Mode
Ramp Rate
Loop 1 Control
On/Off Hysteresis
Mode
Autotune
PID
Loop 1 Time Prop
Cycle Time 1
Cycle Time 2
Alarm 1 (8)
Trip
Initial Setu p
Ap p. Te m plate
Loop 1 Output Type
Loop 1 Split O/P
Instrument Tag
Mains Freq.
Cong Action
Reset to Defaults
Security Setup
Basic Password
Advanced Password
Reset Passwords
Language
Operator Templates
Page 1 (4) Template
Operator Functions
Autoscr oll
Soft Key Function
Auto Manual Enable
Local Remote Enable
Alarm Ack. Enable
SP Adjust Enable
Settings
Brightness
Note. When in Advanced Level (configuration) mode, press and hold the
key to return to the standard Operator page
Exit Select Exit Select
