ABB ControlMaster CM10 Commissioning Instructions

12
CONTROLMASTER CM10 | UNIVERSAL PROCESS CONTROLLER,  DIN | CI/CM10-EN REV. C
…3 Installation
Referring to Figure 4:
1 Position one panel clamp
A at the top of the case
against the panel.
2 Locate the panel clamp anchor B in slot C.
3 Tighten the panel clamp anchor screw
D until
panel clamp
A is lightly touching the panel
4 Repeat steps 1 to 3 to fit the remaining panel clamp
E and panel clamp anchor F
5 Torque tighten both panel clamp anchor screws to
0.1 N⋅m (0.9 lbf⋅in).
NOTICE
Do not over-tighten the screws.

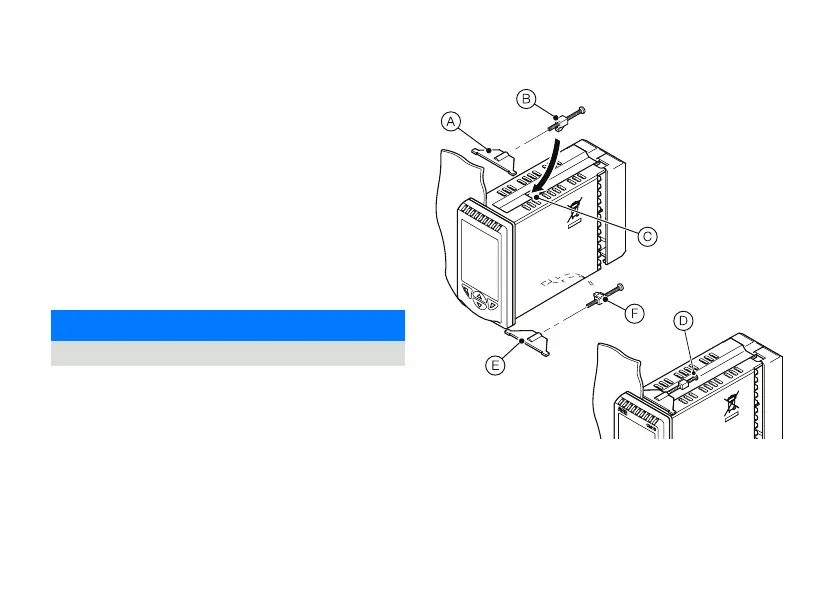

Figure 4 Panel clamp assembly
