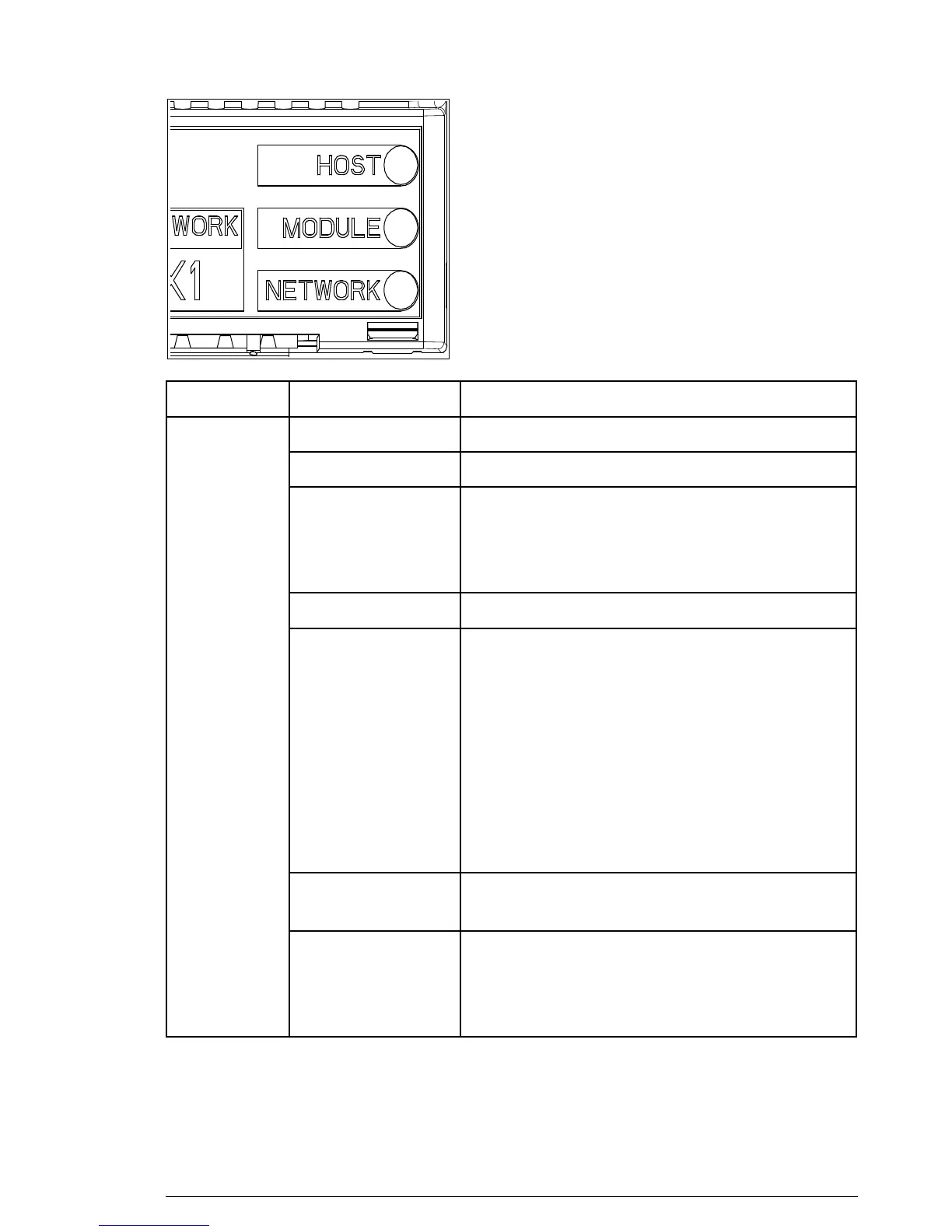

Diagnostics 157
MODULE
Off There is no power applied to the device.
Green Device is operating in a normal condition.
Flashing green Device needs commissioning due to
configuration missing, incomplete or
incorrect. The device may be in the
standby state.
Flashing red Recoverable fault
Red Device has an unrecoverable fault. This
may be cleared by:
• Fieldbus Adapter parameter refresh
• cycling DeviceNet network power or
• cycling drive power.
This may have been caused by:
• duplicate MAC error
• bus-off condition or
• buffer overflow.
Flashing red-
green
Device is in self-test.
Flashing orange,
alternating with
the HOST
flashing orange
Internal file system error. The error may
be cleared by cycling drive power. If the
error persists, contact your local ABB
representative.
