26 Overview of the DeviceNet network and the FDNA-01 module

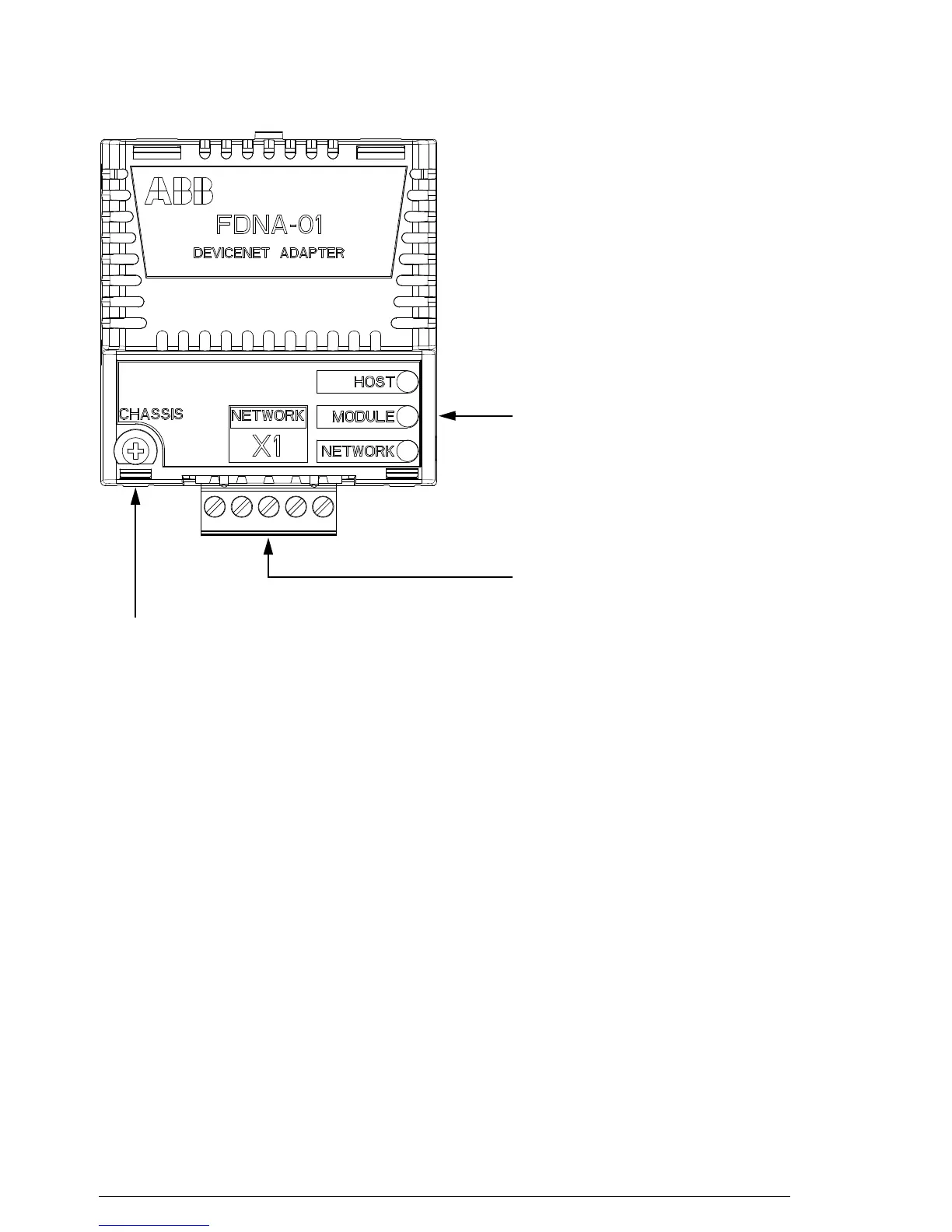

Layout of the adapter module
Diagnostic LEDs
(see chapter Diagnostics)
Bus connector X1
(see chapter Electrical
installation)
Mounting screw
