Appendix E FTIR Frequency scale calibration Effect of IR beam restricting accessories on frequency
AA003700-01 rev. G. 2.0 67
the expected frequency for the NIR water vapor line when measured with an open
beam or large throughput sampling accessory.
Effect of IR beam restricting accessories on frequency
A common example of a beam restricting accessory is the vial sampling accessory used
with the MB3600. In order to achieve a uniform optical path through the curved walls of
small glass vials, the IR beam is restricted by means of a 1mm wide vertical slit in the vial
sampling accessory. This changes the illumination distribution and hence the frequency

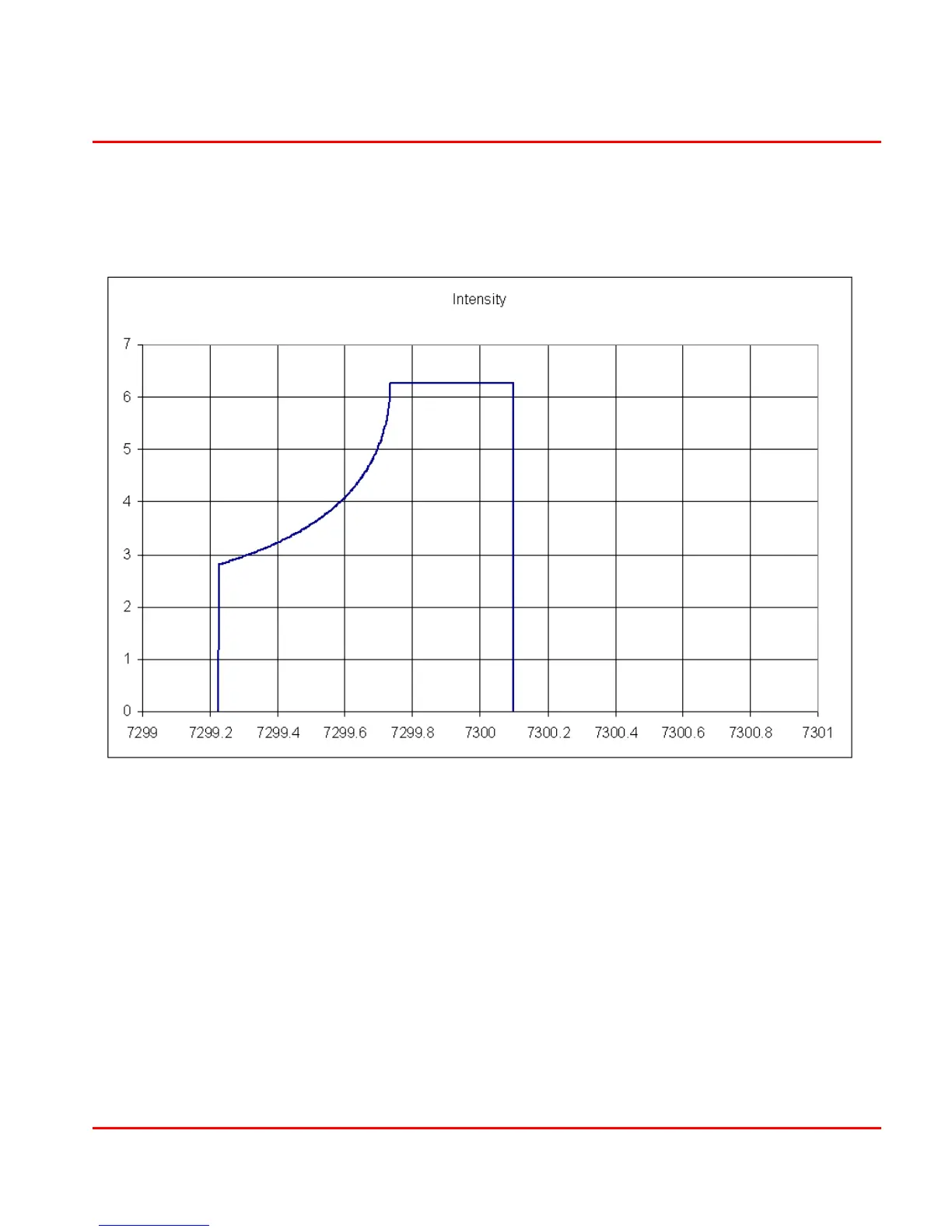

Figure E- 2. Illumination distribution as a function of frequency shift for figure 1 distribution
