15
AUTOMATIC CONTROL UNIT, OMD800
AUTOMATIC CONTROL UNIT, OMD800
OMD
OMD
OMD
OMZD1
4
3
2
1
3,5×8
TX15
0,8 Nm
×8
OMD
×2
4b
4a

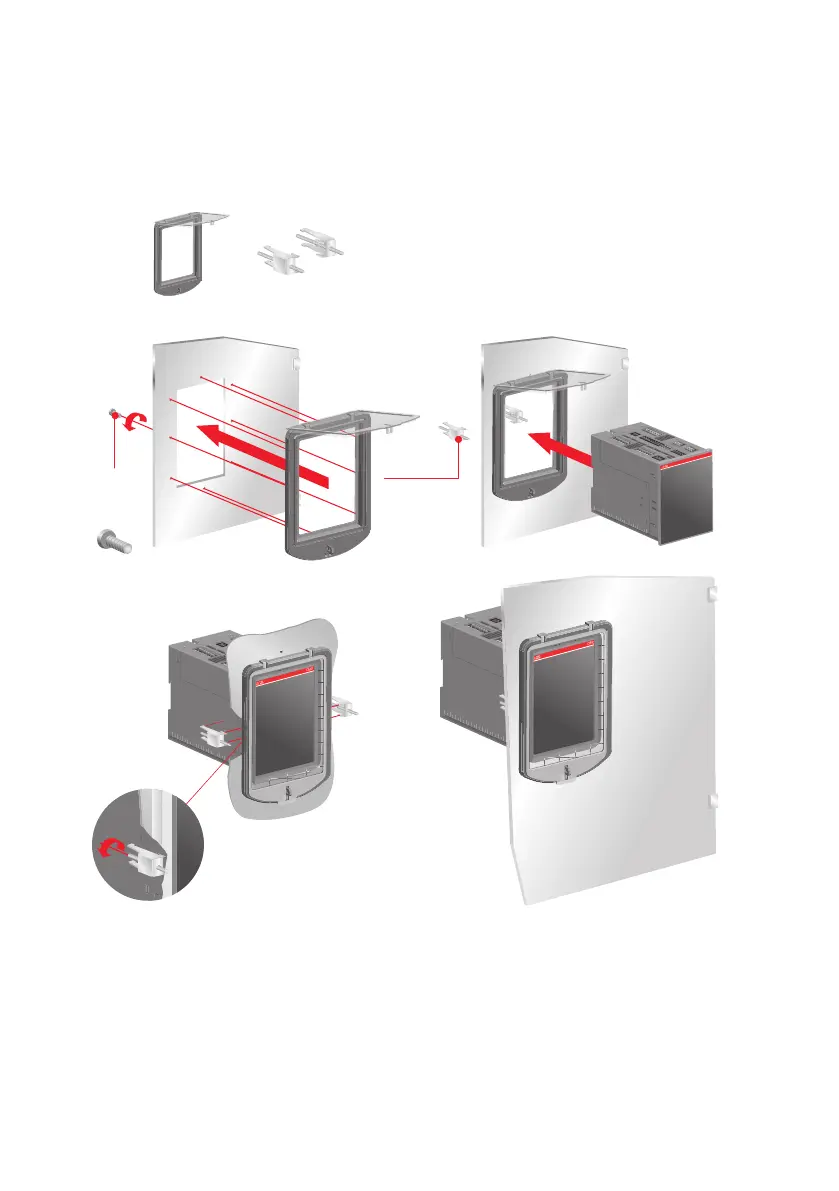

Figure 4.3 Automatic control unit OMD800, door mounting with the cover plate, door
drilling for the cover plate OMZC2, see Accessories, Section 10
