ABB OMD800 - Mounting; Door Mounting 14−15

14
AUTOMATIC CONTROL UNIT, OMD800
—
4.2 Mounting
4.2.1 Door mounting
The automatic control unit OMD800 can be mounted on the door with the fastener OMZD1, see Acces-
sories, Section 10. Door drilling according to Figure 4.2. As an optional extra you can use the cover plate
OMZC2 on the door for OMD800, see Figure 4.3 on next page and Accessories, Section 10.

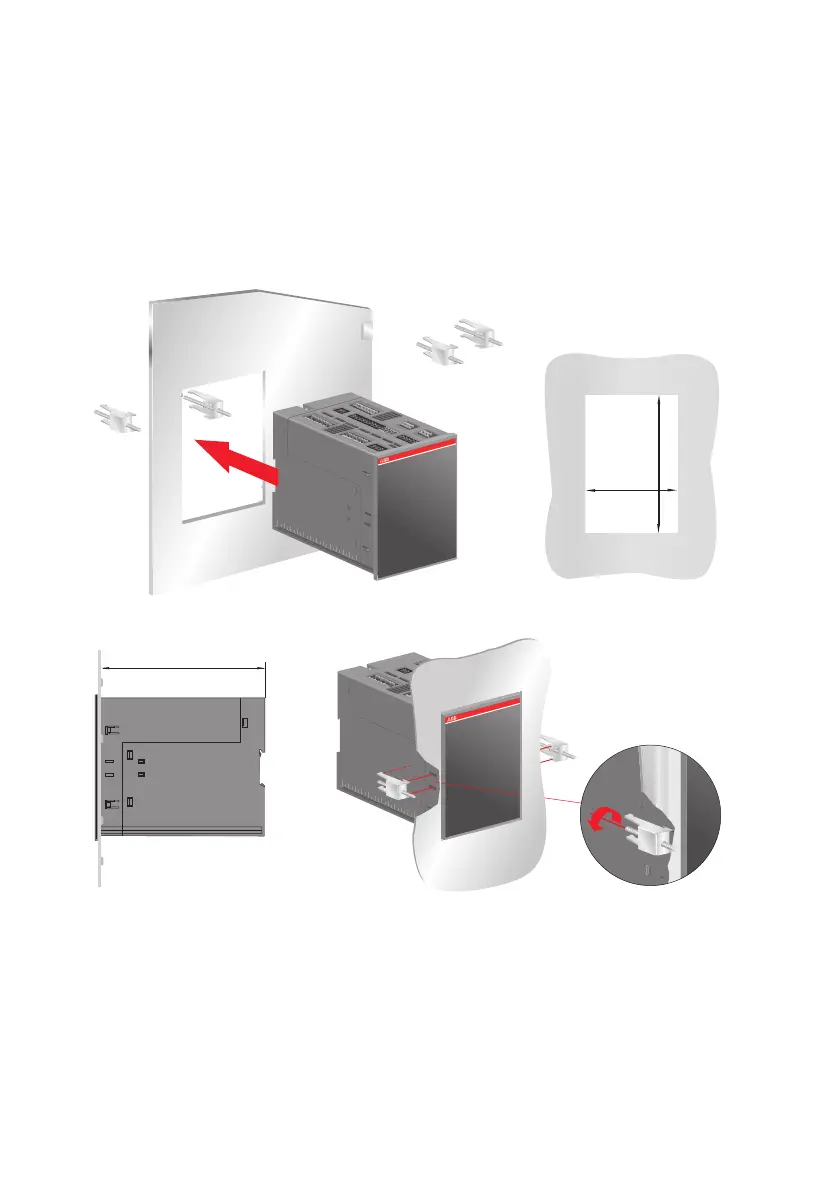

Figure 4.2 Automatic control unit OMD800, door mounting, door drilling
160
KA00480
91
139
2
OMZD1
×2
1
2b
2a
