AUTOMATIC CONTROL UNIT, OMD800
4.2.2 DIN-rail mounting
The automatic control unit OMD800 can be mounted on the 35 mm DIN-rail, see the Figure 4.4. Door
drilling, if needed, according to Figure 4.4. As an optional extra you can use the cover plate OMZC2 on
the door for OMD800, see Figure 4.5 and Accessories, Section 10.

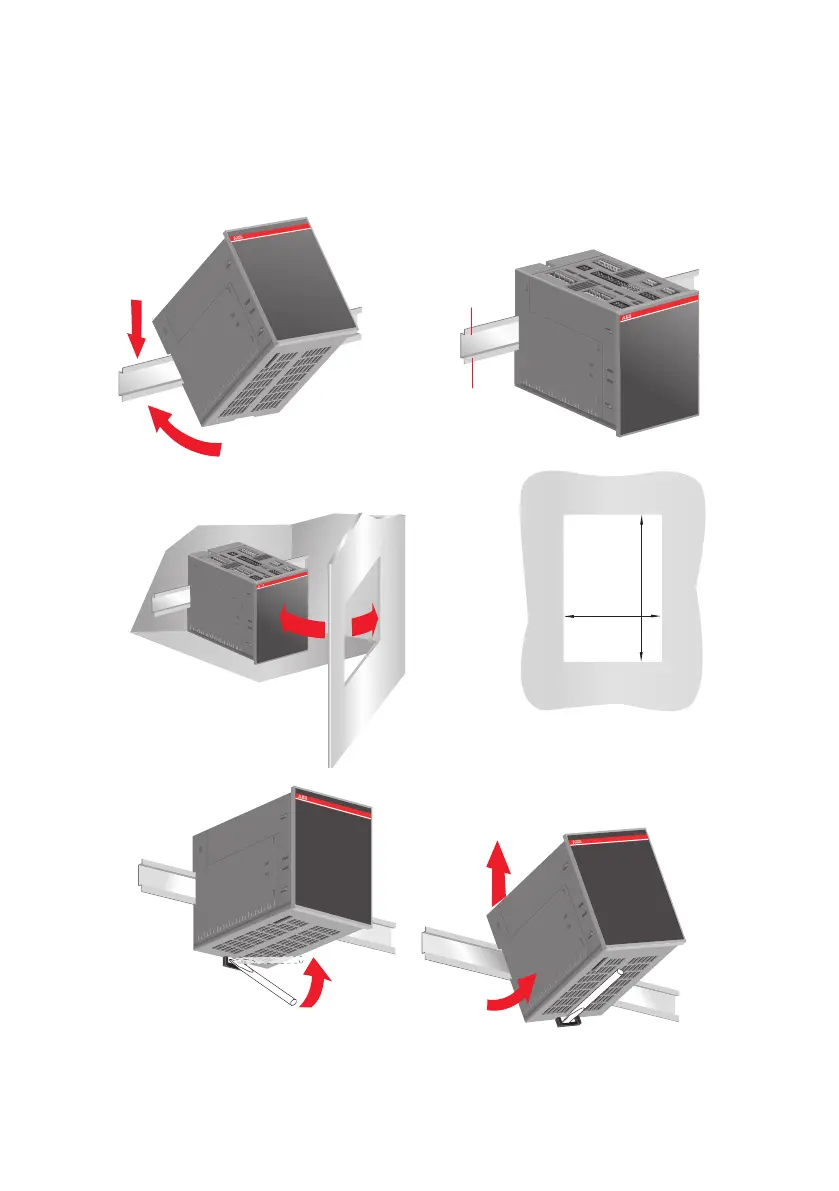

Figure 4.4 Automatic control unit OMD800, DIN-rail mounting, door drilling
A07291
35 mm
EN 50022
3
2
1
97
145
Remove
1 2
3
