AUTOMATIC CONTROL UNIT, OMD800
AUTOMATIC CONTROL UNIT, OMD800

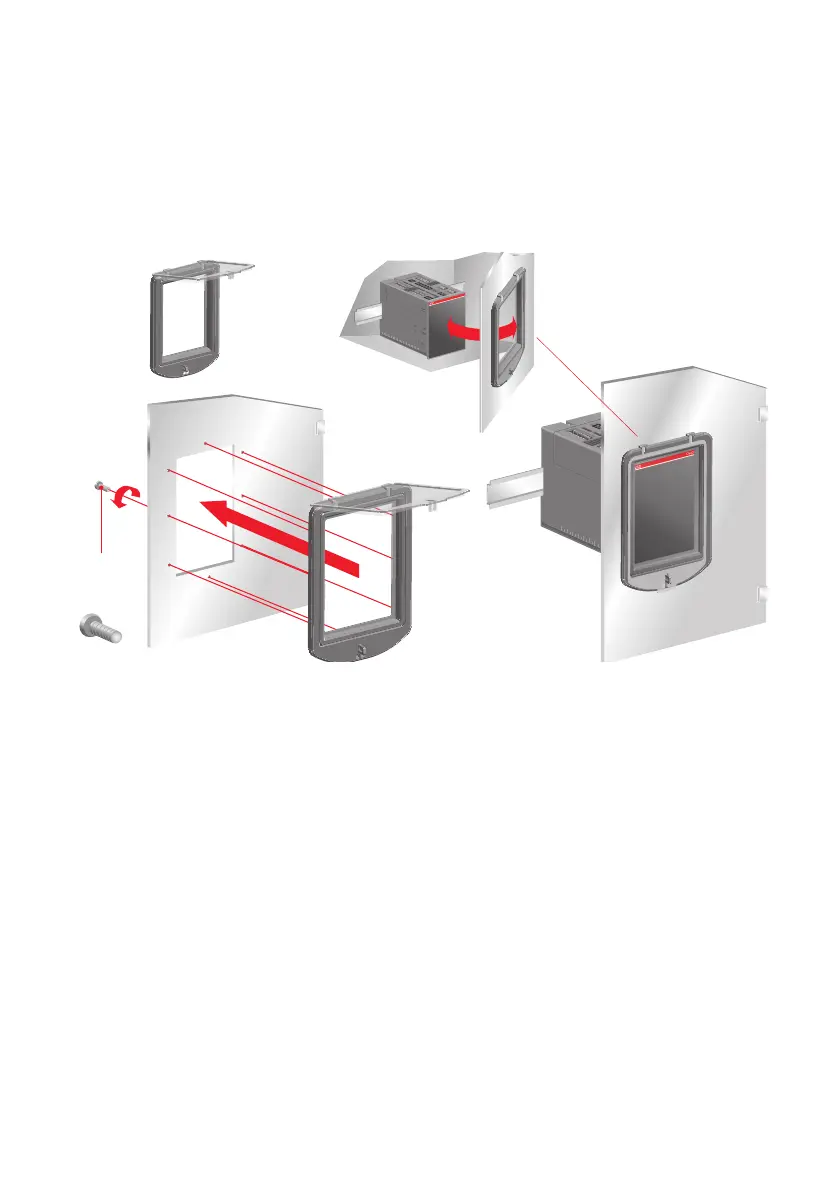

Figure 4.5 Automatic control unit OMD800, DIN-rail mounting with the cover plate, door drilling for
the cover plate OMZC2, see Accessories, Section 10
OMZC2
A07268
OMD
OMD
2
3,5×8
TX15
0,8 Nm
×8
1
