AUTOMATIC CONTROL UNIT, OMD800
Frequency Thresholds
User can set separately Line 1 and Line 2 frequency thresholds both minimum and maximum values.
Factory settings are min -1% and max 1%.

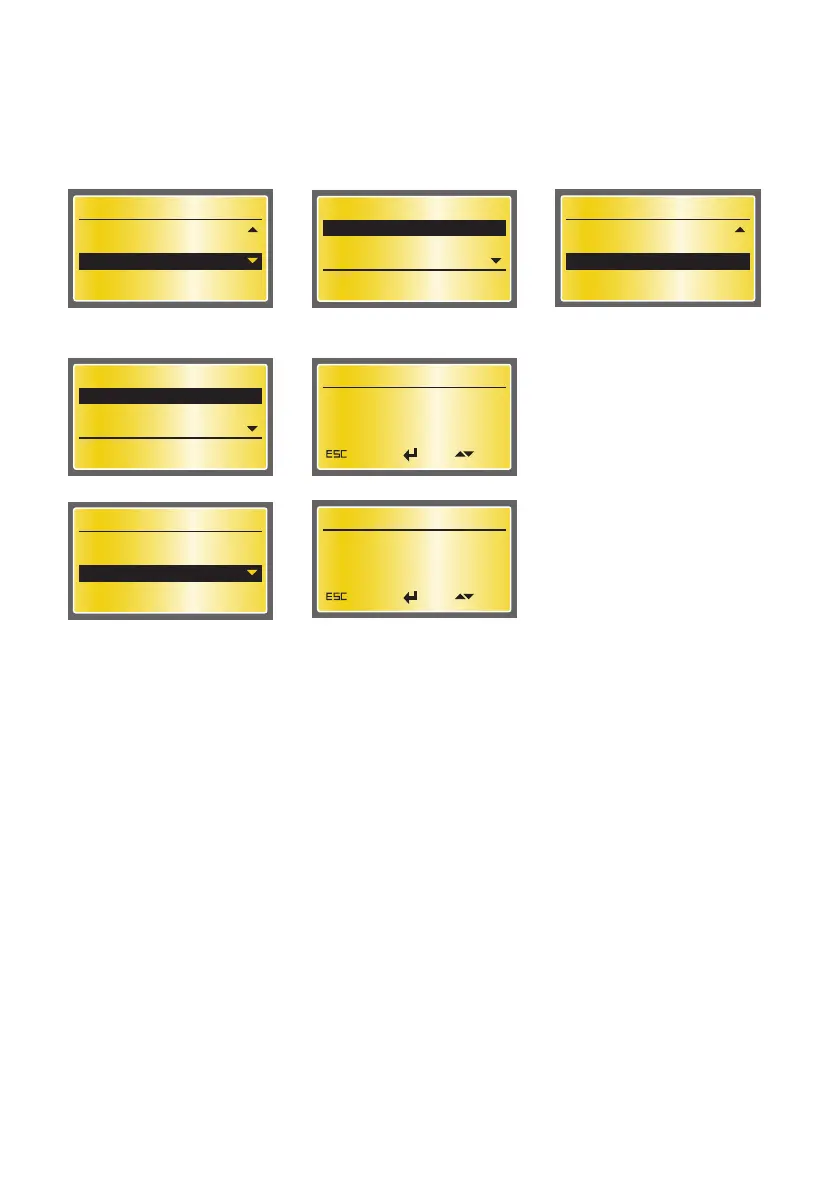

Figure 7.35 Frequency Thresholds (min and max) settings for Line 1 and Line 2
Figure 7.36 Frequency Threshold LN1, factory settings: min -1%, max 1%
Device Cofiguration
Voltage Tresholds
Voltage Hysteresis
Frequency Tresholds
5/12
A07163
Frequency Thresholds
Freq Threshold Min LN2
Freq Threshold Max LN1
Freq Threshold Max LN2
4/4
A07167
Frequency Thresholds
Freq Threshold Min LN1
Freq Threshold Min LN2
Freq Threshold Max LN1
1/4
KA00275
Frequency Thresholds
Freq Threshold Min LN1
Freq Threshold Min LN2
Freq Threshold Max LN1
3/4
A07166
Frequency Thresholds
Freq Threshold Min LN1
Freq Threshold Min LN2
Freq Threshold Max LN1
1/4
KA00275
Freq Treshold Min LN1
–1 %
KA00332
Cancel EditOK
Freq Treshold Max LN1
+1 %
KA00333
Cancel EditOK
