4 Mechanical mounting
The transmitter (TX) and receiver (RX) must be installed with the relevant sensitive surfaces facing each other. The
connectors must be positioned on the same side. The distance between the two units must be within the operating
range of the model used (see paragraph 11 – “Technical data”).
The two units must be aligned and as parallel as possible. The next step is the fine alignment, as shown in paragraph
6 “Alignment procedure”.
4.1 Mounting with angled fixing brackets
Angled fixing brackets are supplied with all Orion1 Base models. To mount the AOPD, insert the supplied threaded
pins into the grooves on the two units (see Figure 17).

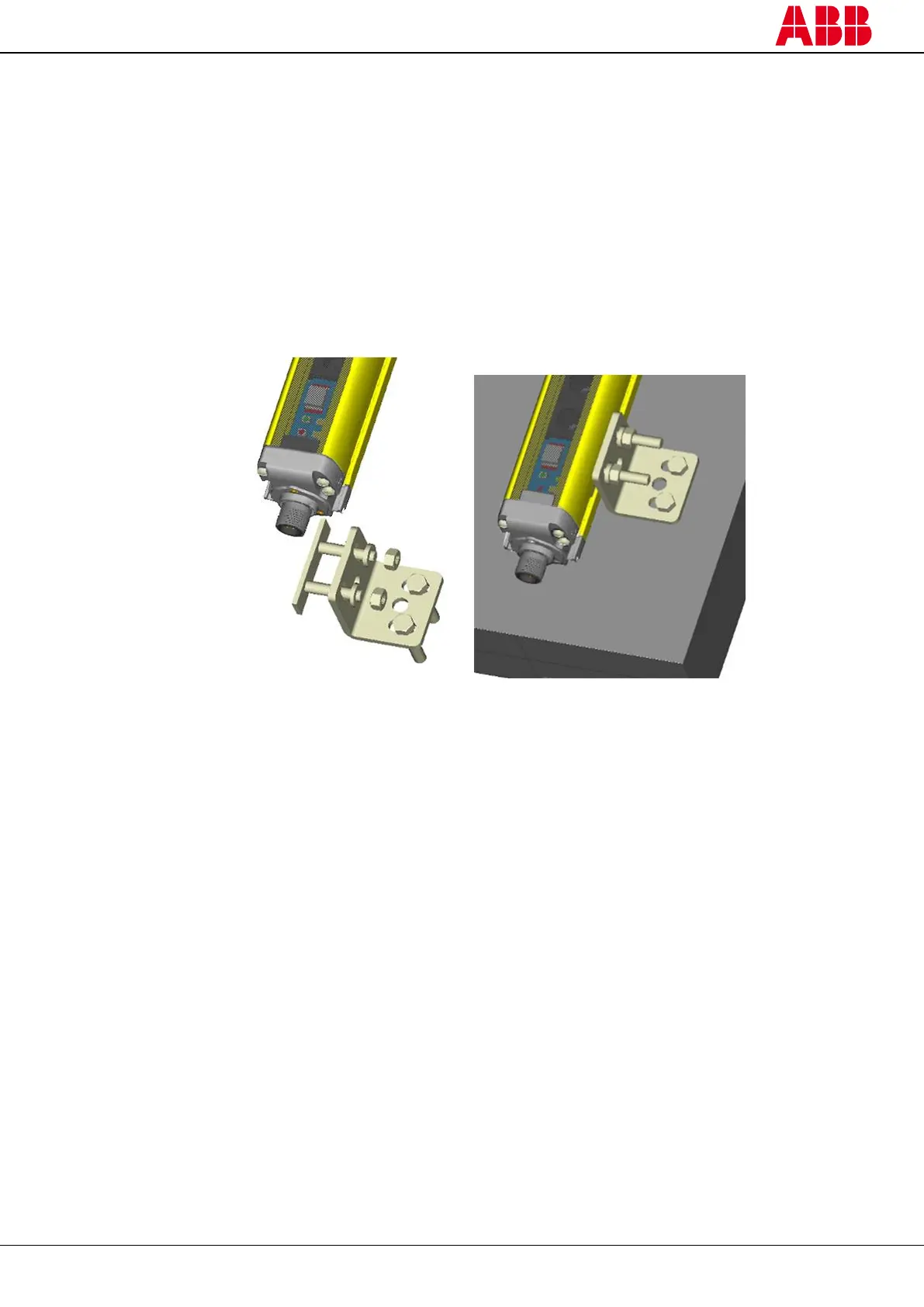

Figure 17 – Mounting with angled fixing brackets
