2.3 Protected height

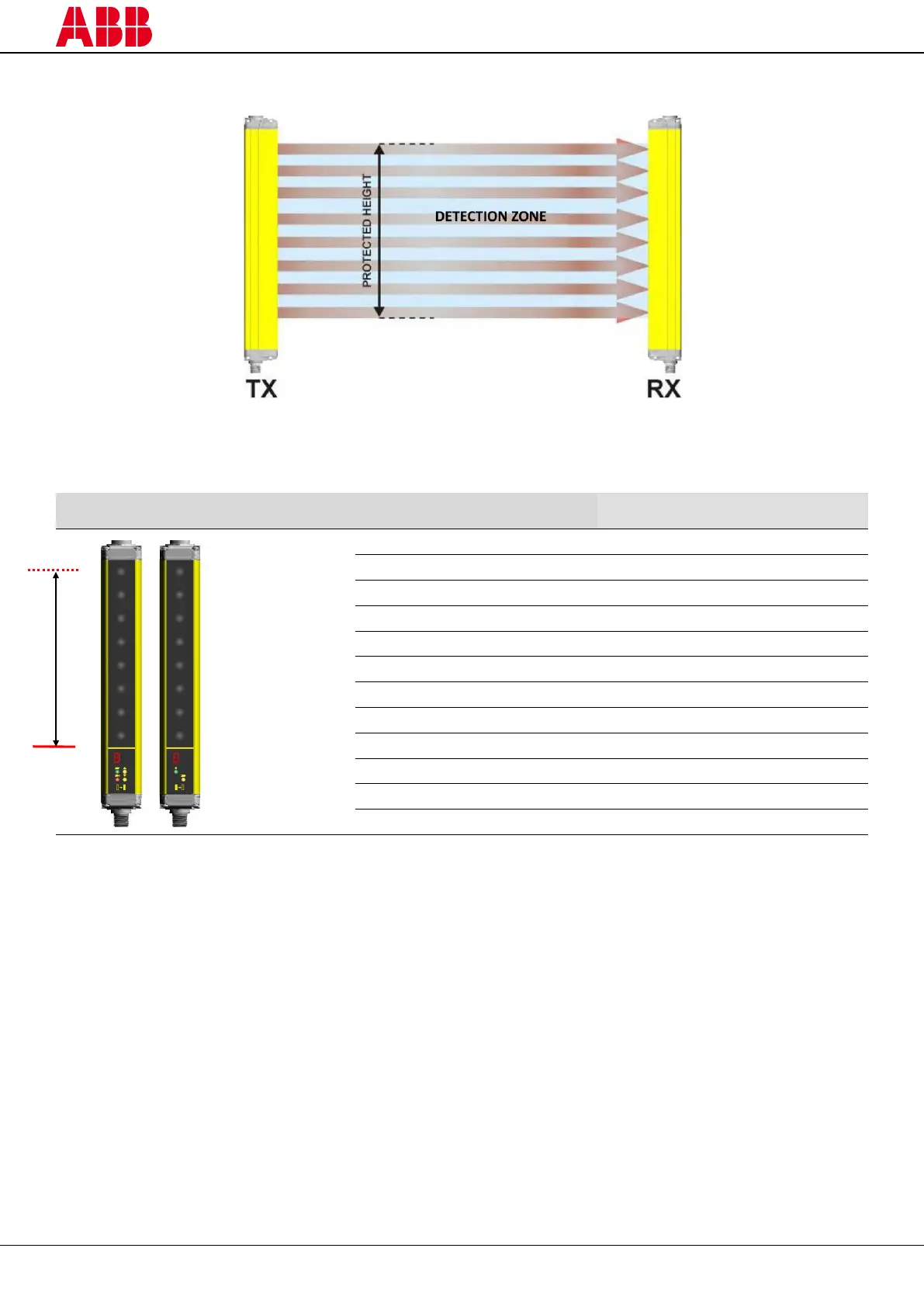

Figure 2 – Protected height
The protected height of each Orion1 Base is given in the table below. It starts from the white line engraved on the front
glass:
Model
Protected height Hp (mm)
Orion1-4-xx-015-B
150
Orion1-4-xx-030-B
300
Orion1-4-xx-045-B
450
Orion1-4-xx-060-B
600
Orion1-4-xx-075-B
750
Orion1-4-xx-090-B
900
Orion1-4-xx-105-B
1050
Orion1-4-xx-120-B
1200
Orion1-4-xx-135-B
1350
Orion1-4-xx-150-B
1500
Orion1-4-xx-165-B
1650
Orion1-4-xx-180-B
1800
xx = Resolution (14 mm – 30 mm)
Hp
Reference
