ABB Orion1 Base - Dimensions; Profiles

2TLC172287M0201 Rev B 39 www.abb.com/jokabsafety
2015-09-17
13 Dimensions
13.1 Profiles

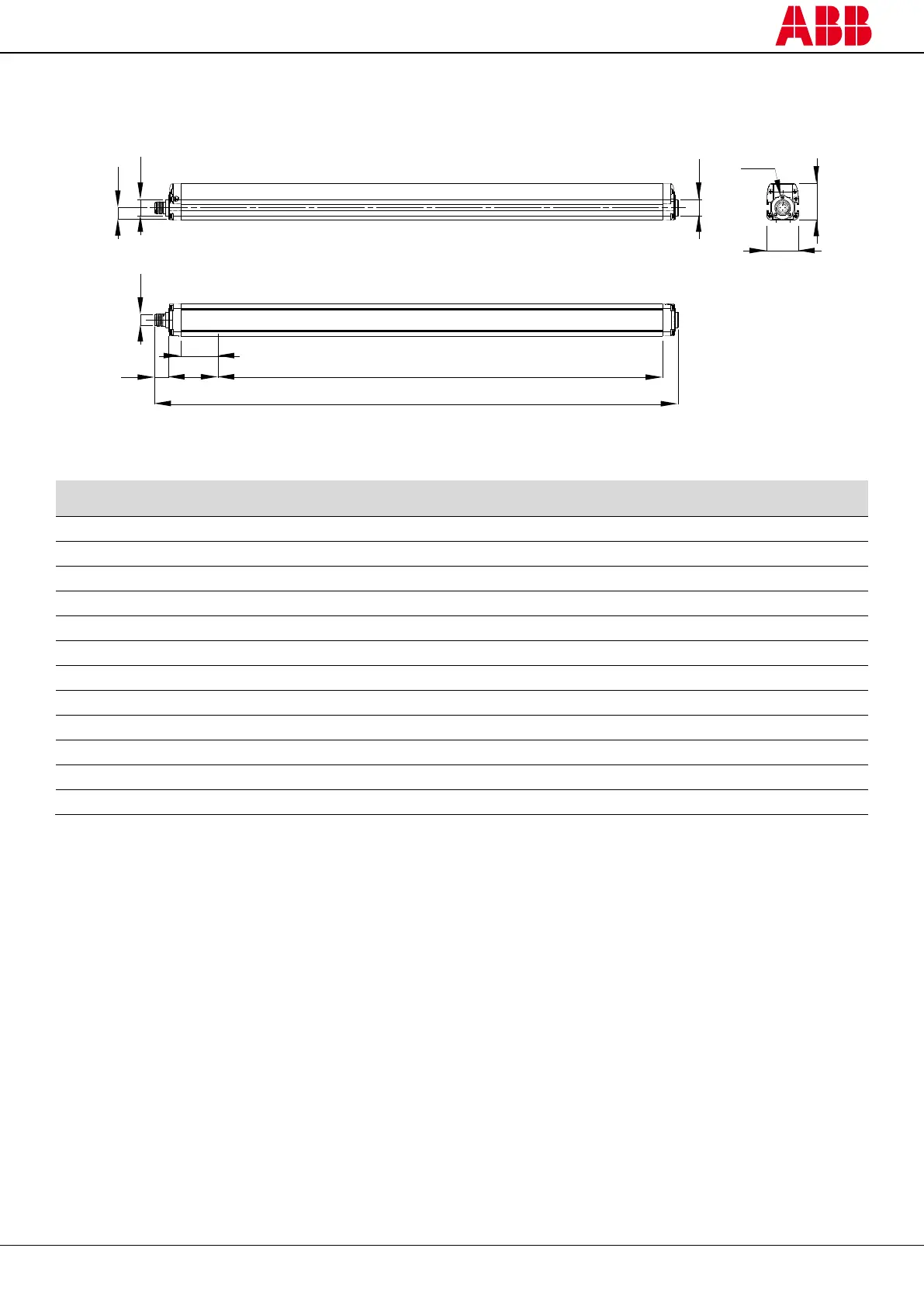

Figure 32 – Dimensions of the profiles
NB: All dimensions in millimetres.
Model
L
1
L
2
Orion1-4-xx-015-B
233.3
153.3
Orion1-4-xx-030-B
383.2
303.2
Orion1-4-xx-045-B
533.2
453.3
Orion1-4-xx-060-B
683.2
603.2
Orion1-4-xx-075-B
833.2
753.3
Orion1-4-xx-090-B
983.2
903.2
Orion1-4-xx-105-B
1133.2
1053.2
Orion1-4-xx-120-B
1283.3
1203.3
Orion1-4-xx-135-B
1433.2
1353.2
Orion1-4-xx-150-B
1583.3
1503.3
Orion1-4-xx-165-B
1733.3
1653.3
Orion1-4-xx-180-B
1883.3
1803.3
xx: resolution, 14 or 30 (mm)
38
L2
50.5
14
L1
Ø16
12.5
M12
32.3
36.9
M2 n°3
x2
Ø16
