2TLC172287M0201 Rev B 40 www.abb.com/jokabsafety
2015-09-17

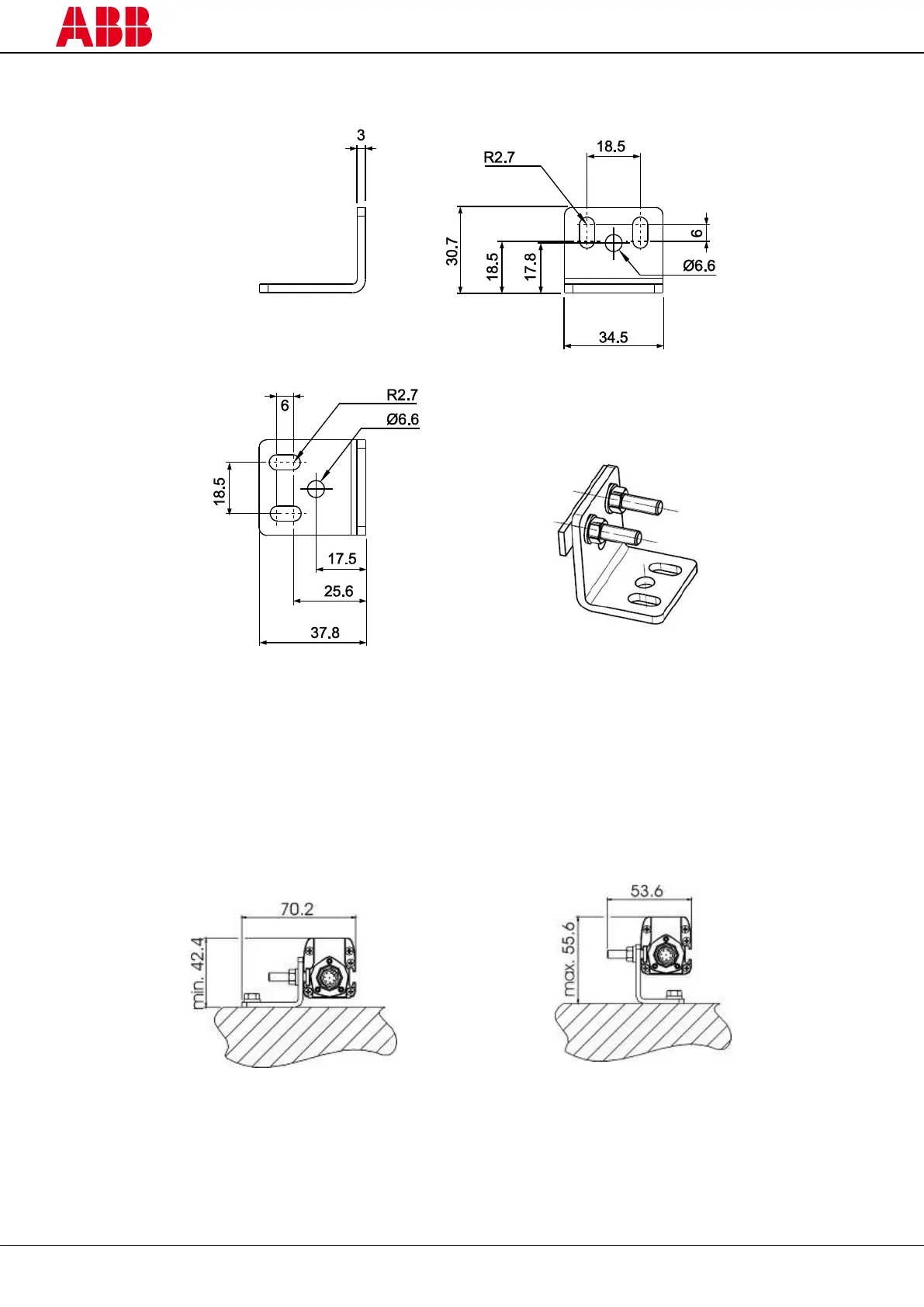

13.2 Angled fixing bracket
Figure 33 Dimensions of the angled fixing bracket
NB: All dimensions in millimetres.
13.3 Fixing bracket with profile
MOUNTING A
MOUNTING B
Figure 34 Dimensions of the angled fixing bracket with a profile
NB: All dimensions in millimetres.
