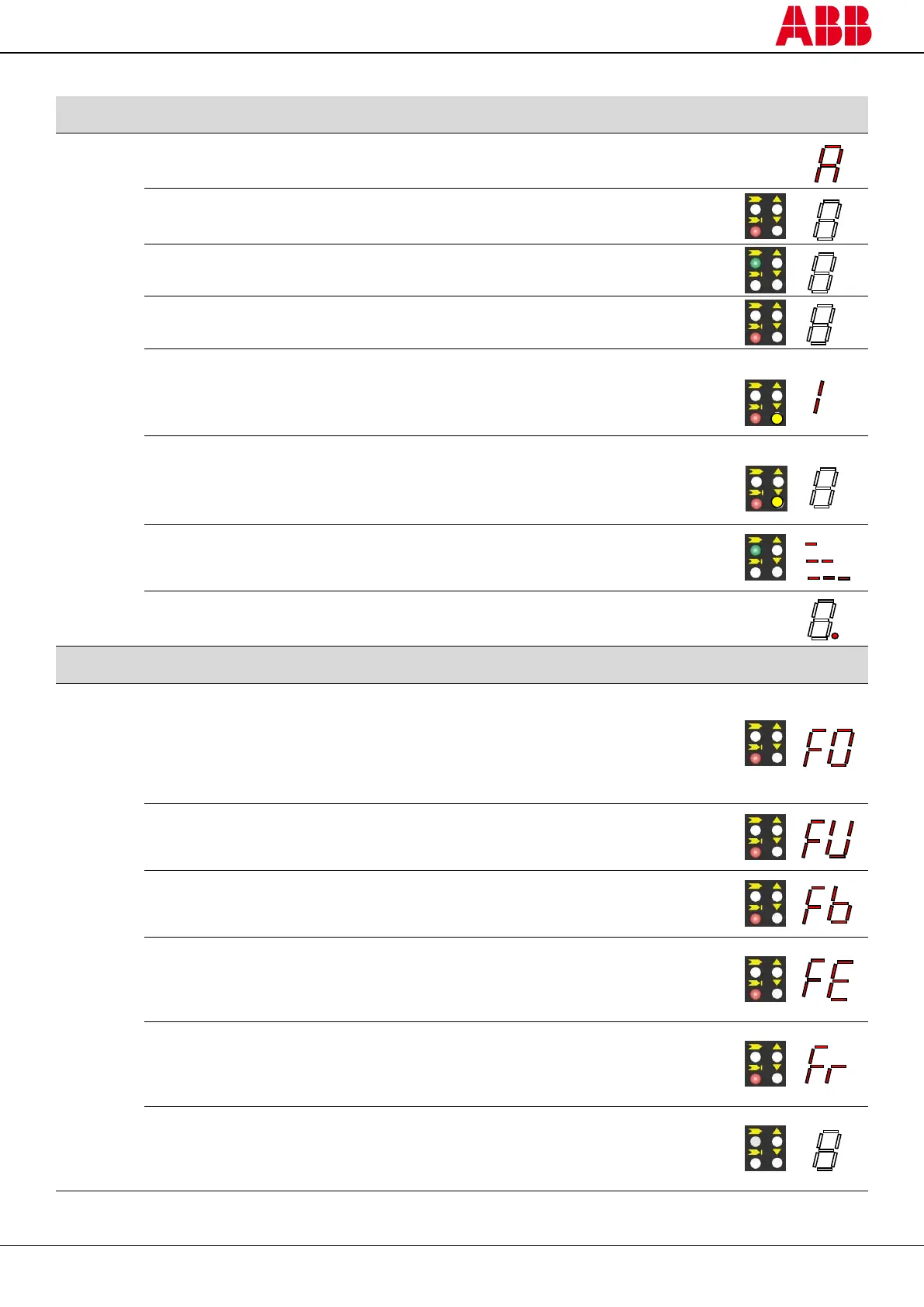

8.2.2 Receiver
Function
Status
Meaning
LED
DIGIT
Normal
operation
mode
Alignment
See paragraph 6 – “Alignment procedure”.
TEST
(red on)
AOPD being tested.
OSSD outputs off.
Reception
(green on)
AOPD working in normal operating mode.
OSSD outputs on
Beams interrupted
(red on)
Beam(s) interrupted in Automatic Reset.
OSSD outputs off.
Interlock
Beams free
(red on
yellow on)
AOPD in interlock, waiting for reset.
OSSD outputs off.
Interlock
Beams interrupted
(red on
yellow on)
Beam(s) interrupted in Manual Reset.
AOPD in interlock.
OSSD outputs off.
Alignment level
Minimum (1 bar)
Medium (2 bars)
Maximum (3 bars)
EDM enabled
EDM function is selected.
Function
Type
Check and repair
LED
DIGIT
Error
mode
OSSD error
(red on)
Check the wiring and connections of the OSSD outputs.
Make sure that there is no short-circuit between them or with
the supply voltage. See also 5.4 “Connection examples”.
Then Acknowledge.
If the error persists, contact your
ABB Jokab Safety representative.
Internal error
(red on)
Switch the power off and on.
If the error persists, contact your
ABB Jokab Safety representative.
Optical error
(red on)
Acknowledge.
If the error persists, contact your
ABB Jokab Safety representative.
EDM error
(red on)
Check the wiring and connections of the EDM as well as the
time sequence (see the Time chart, Figure 30).
If the error persists, contact your
ABB Jokab Safety representative.
Reset selection error
(red on)
Check the wiring and connections of the MAN / AUTO pin
(see paragraph 5.2 – “Receiver (RX)”).
If the error persists, contact your
ABB Jokab Safety representative.
No power supply
(LEDs off)
Check the wiring and the connections of the power supply.
Check that its value is within the allowed range.
If the error persists, contact your
ABB Jokab Safety representative.
