ABB PVS-50-TL User Manual

- 129 -
000877BG

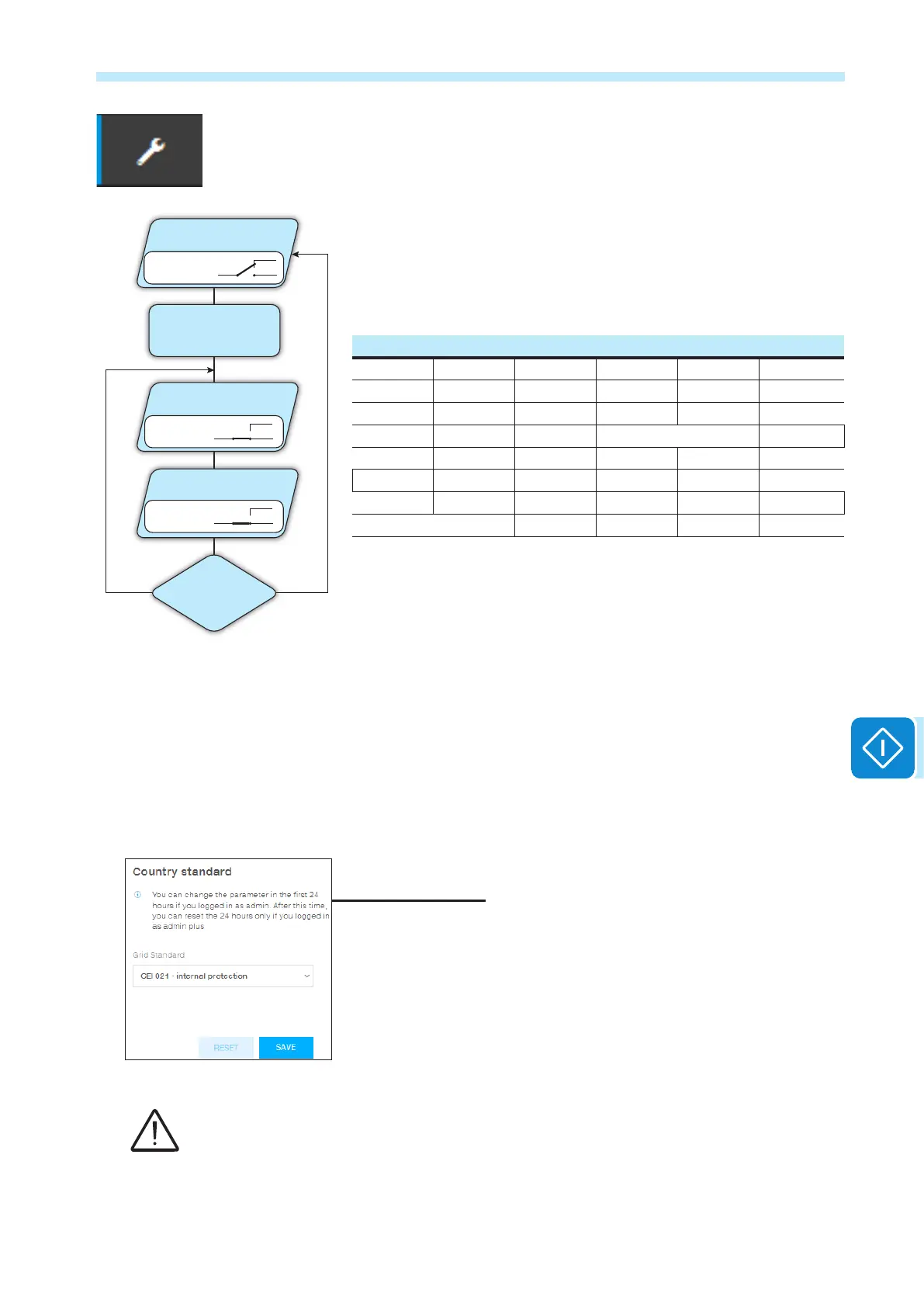

7 - Operation
• Alarm-Contact (alarm congurable - latch):
The relay is activated (status: switched) whenever an error (code Exxx)
or a warning (code Wxxx) is present from those selected from the list in
the dedicated submenu Output Activation Filter of the inverter display
(see the table below). When the inverter returns to the normal operating
state and reconnects with the grid.
Selectable alarms for which the relay is activated
E001 E002 E003 E004 E005 E006
E007 E010 E011 E013 E014 E015
E017 E018 E019 E020 E021 E022
E023 E025 E029 E031 E032 E033
E034 E036 E037 E053 E055 E075
E077 E078 E079 E080 E084 W002
W004 W005 W006 W007 W011 W015
W017 W046 W047 W048
If the alarm condition is persistent, the relay will remain activated
(status:switched)
• Alarm-Contact (alarm congurable - matrix):
In this mode, it is possible to congure the behaviour of the alarm relay
according to an error table which can be setup with the Web User Inter-
face. In the table it is possible to select the alarms or warnings for which
the alarm relay is activated (status: switched); for each individual alarm it
is also possible to select the “Latch” or “No Latch” mode.
Country Standard
By accessing to the Country Standard sub-menu you can modify the
grid standard within 24 hours while the inverter is operating.
After the grid standard was set you have 24 hours to make any changes to the grid standard
value; 24 hours later the Country Standard sub-menu will be locked, and any subsequent
changes can only be made accessing with Admin Plus privileges. Refer to the dedicated
section on this topic in the manual to know how to unlock the Country Standard sub-menu.
INVERTER RUN
SELECTED
ERROR/WARNING
OCCURENCY
ERROR MESSAGE
t=15s
GRID RECONNECTION
t=based on Country Standard
ERROR/WARNING
STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Switched
N.C.
N.O.
Relay State: Switched
