ABB PVS-50-TL User Manual

- 65 -
000868BG
5 - Installation
• Give each wire a pull test to conrm the connection is secure

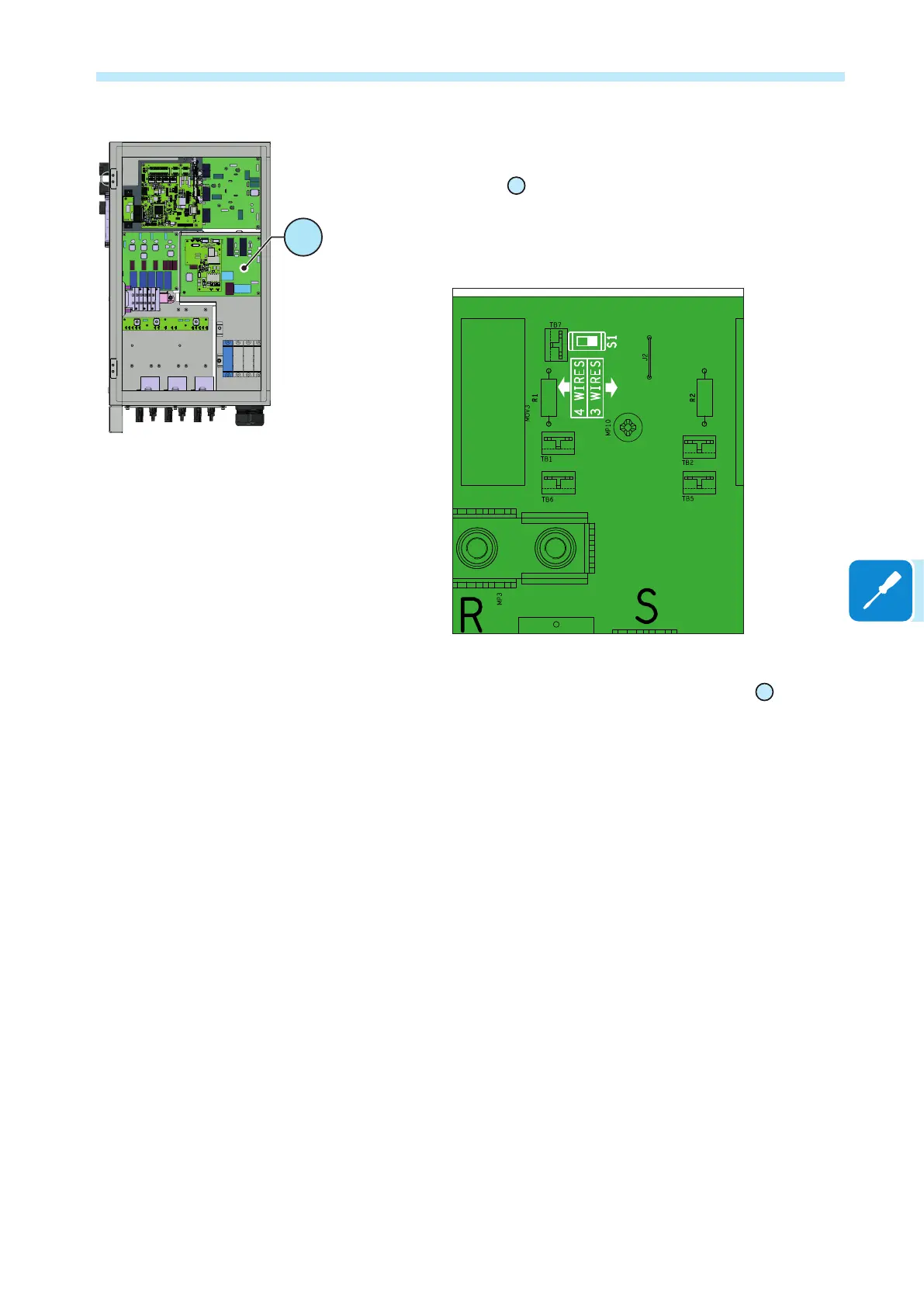

• In the AC lter board
40
set the switch (S1) based on the conguration
of the output connections:
- 3WIRES position. Three wires conguration (R+S+T)
- 4WIRES position. Four wires conguration (R+S+T+Neutral)
• Once connection to the AC output screw terminal block
38
has been
completed, retighten (10.0 Nm torque) the cable gland rmly and check
seal.
