VortexMaster FSV430, FSV450 SwirlMaster FSS430, FSS450 | CI/FSV/FSS/430/450-EN Rev. G 41

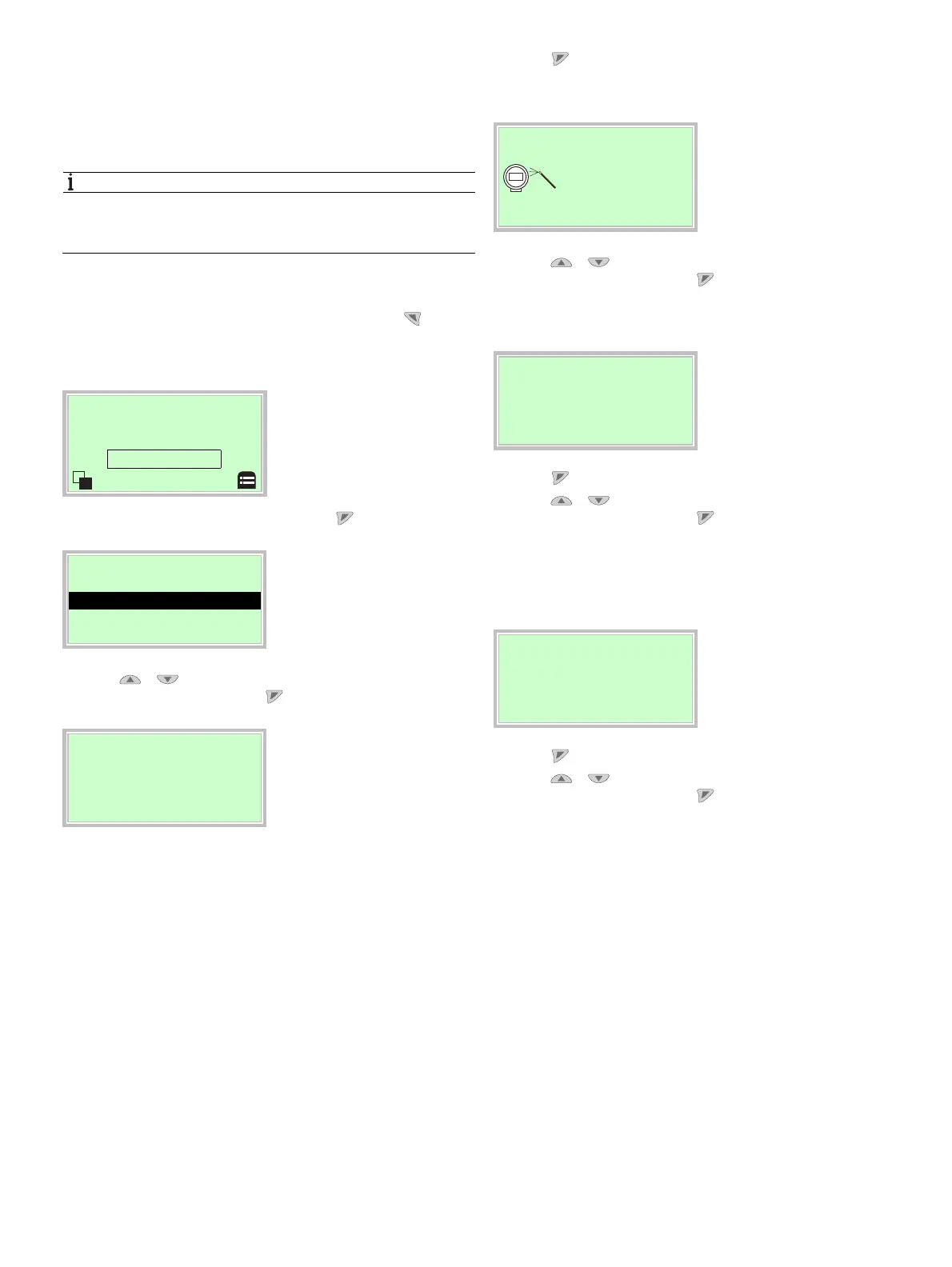

6.4.1 Parameterization via the "Easy Setup" menu
function
Settings for the most common parameters are summarized in
the "Easy Setup" menu. This menu provides the fastest way to
configure the device.
NOTICE
The LCD display is provided with capacitive control buttons.
These enable you to control the device through the closed
housing cover.
The following section describes parameterization via the "Easy
Setup" menu function. The parameters are showed one after
another. The respective next parameter is called by (Next).
Open the Easy Setup menu.
Process display
Qv 0.00 m3/h
T 40.322 °C
Qdn 0%
1. Switch to the configuration level with .
A
ccess Level
Read Only
Standard
Service
Back Select
2. Use / to select "Standard".
3. Confirm the selection with .
Enter Password
**********
RSTUVWXYZ 12345
Next OK
4. Use to confirm the password. A password is not
available as factory default; you can continue without
entering a password.
Menu
Easy Setup
Exit Select
5. Use / to select "Easy Setup".
6. Confirm the selection with .
Selection of the menu language.
Easy Setup
Language
German
Next Edit
1. Use to call up the edit mode.
2. Use / to select the desired language.
3. Confirm the selection with .
Selection of the operating mode.
For more information on the operating mode, refer to the
chapter titled "Operating mode" on page 47.
Easy Setup
Operating Mode
Liquid Volume
Next Edit
1. Use to call up the edit mode.
2. Use / to select the desired operating mode.
3. Confirm the selection with .
