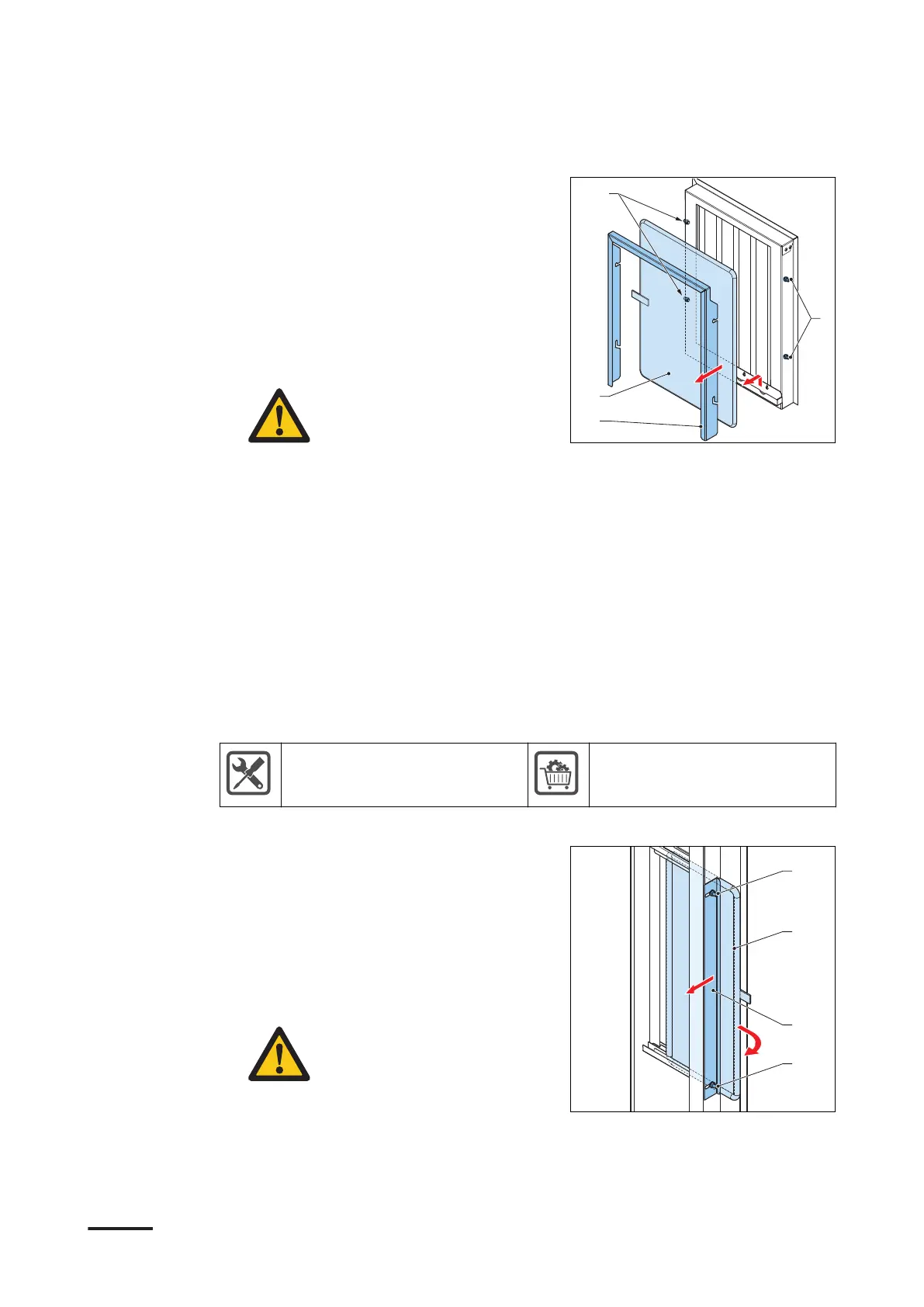

ABB Terra 94 - Replace the Air Outlet Filter

Procedure
1. De-energize the EVSE. Refer to section
4.6 .
2. Open the left and right doors. Refer to
section 6.1 .
3. Loosen the nuts (A).
Use the spanner.
4. Carefully remove theses parts:
1. Cover (B)
2. Air inlet filter (C)
Caution: Prevent
contamination of other parts
of the EVSE. Make sure that
contamination on the filter
does not come off.
5. Install the new air inlet filter. Make sure that the air flow direction that is indicated on
the air inlet filter corresponds with the air flow.
6. Install these parts:
1. Clean air inlet filter
2. Cover
7. Tighten the nuts.
8. Do the steps 3 to 7 again for the other air inlet filters.
9. Close the doors. Refer to section 6.2 .
4.8.5 Replace the air outlet filter
Preliminary requirements
• Spanner • Air outlet filters. Refer to
section 7.4 .
Procedure
1. De-energize the EVSE. Refer to section
4.6.1 .
2. Open the right door. Refer to section 6.1 .
3. Loosen the nuts (A).
Use the spanner.
4. Pull the cover (B) to the front.
5. Carefully pull and remove the outlet filter
(C).
Caution: Prevent
contamination of other parts
of the EVSE. Make sure that
contamination on the filter
does not come off.
6. Install the new air outlet filter. Make sure that the air flow direction that is indicated on
the air outlet filter corresponds with the air flow.
7. Push the cover to the rear.
8. Tighten the nuts.
C
B
A
A
C
A
A
B
